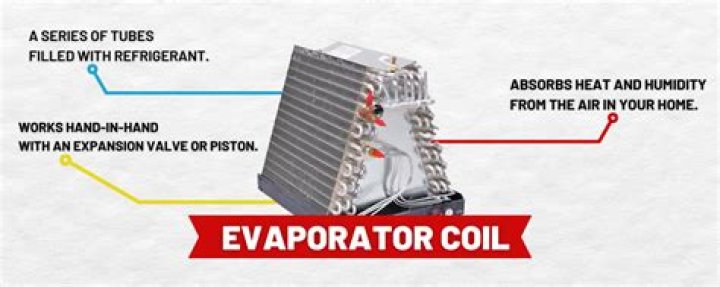

An evaporator coil is the part of an air conditioner or heat pump that absorbs the heat from the air in your house. It is located inside the air handler or attached to the furnace.

Where is the evaporator coil located on a refrigerator?

The evaporator coils sit in the back of the freezer compartment of a refrigerator and look like a radiator. The back wall of the freezer is actually the cover of the evaporator coil and can easily be opened with a screwdriver.

How can you tell if an evaporator coil is bad?

1. Air coming from the vents is warm.
2. Air conditioner starts and stops frequently but doesn’t properly cool your home.
3. Air conditioner does not turn on.
4. Refrigerant leak near the indoor cooling system components.
5. Unusual noises from the cooling system, such as banging or hissing.

Is the evaporator coil in the air handler?

The evaporator coil is the component in your AC system that absorbs the heat from the air inside your home. It is often either attached to your furnace or located on the inside of your air handler. It works with a condenser coil to complete the heat exchange process that produces cool air.

How much should it cost to replace evaporator coil?

Residential AC Evaporator Coil Replacement Cost Replacing a home air conditioner’s evaporator coil costs $1,000 on average with a typical range of $600 to $2,000. About 40% of the bill comes from labor, or $400 to $1,000. Warranties range from five to 12 years and cover the price of materials.

Do all refrigerators have an evaporator?

The majority of residential refrigerators have their evaporators located against the back walls of their freezers. These evaporators consist of coils, which absorb heat, and fans, which circulate the resulting cool air.

Why is my evaporator coil not getting cold?

If your central AC is not blowing cold air, the refrigerant may be the problem. The unit could be running low and need additional refrigerant added. The most likely cause of this is a leak. A leak not only keeps the AC unit from cooling properly, but also it can cause other issues within the home.

Where is the AC condenser coil located?

Your condenser coils sit directly behind the condenser “fins”—the thin metal wiring that covers your outdoor AC unit (see the picture above). As refrigerant travels to your outdoor unit, it fills the many condenser coils, increasing its surface area so that heat escapes faster.

What causes a refrigerator evaporator to ice up?

When this humid air passes over the cold evaporator coils, it condenses and freezes on the coils. If humid air is continually leaking into the freezer, the evaporator coils ice over too quickly, and the defrost cycle isn’t able to keep up.

Where are the evaporator coils on my AC unit?

An air conditioner’s evaporator coil, also called the evaporator core, is the part of the system where the refrigerant absorbs heat. That is, it’s where the cold air comes from. The evaporator coil is located inside or near the air handler where the blower fan is.

Article first time published on

What causes an evaporator coil to leak?

Leaks in the evaporator coils are primarily caused by a chemical reaction between the copper they’re made from, high humidity and volatile organic compounds (VOCs). Together, they combine to create formic acid that corrodes the copper. VOCs are gases that many common household products emit.

Is it worth replacing evaporator coil?

Your AC is 8+ years (or older) The efficiency of an AC unit is at its best for the first 10 to 12 years of its life. That said, if your AC is nearing 8 years old, replacing just the evaporator coil would be like putting a brand new engine into a dying car—it’s just not worth the money.

What happens when evaporator goes bad?

Warning signs of bad A/C evaporators Weak airflow or warm air. Strange or sweet aroma. Compressor won’t activate. Or inconsistent air temperature.

What happens when AC evaporator goes bad?

A broken air conditioner may be a result of a faulty AC evaporator. Symptoms include weak air, strange odors, and fluctuating temperatures.

How long do evaporator coils last?

If proper maintenance is regularly performed, then the evaporator coils should last 10 to 15 years, which is the ideal lifetime for an evaporator coil and comparable to the lifespan of an AC unit.

Can I replace an evaporator coil myself?

When your air conditioner stops blowing cold air, it may be time to replace your evaporator coil. Some technicians charge anywhere from $800 to $1,500 to do this. While we suggest hiring a professional to replace evaporator coils, here’s an idea of what you can expect, if you want to try it yourself.

How often should evaporator coils be cleaned?

To minimize energy usage and reduce utility costs, the A/C coils should be cleaned at least once a year. It is estimated that dirty evaporator and condenser coils can increase the energy usage of your air conditioning system by over 30 percent.

Why is my house so hot even with AC on?

Air leaks and poor insulation are a common cause for making your house feel hot, even when the AC is working, as they can allow the air your air conditioner has worked so hard to cool to escape, leaving your house hot. Humidity can interfere with your thermostat’s ability to track temperatures and also traps heat.

Why is my AC on but not blowing air?

If the AC unit is running, but there is no air through the vents, you are likely dealing with a fan capacitor that has reached the end of its life. Fan capacitors help get your HVAC system’s outdoor and indoor fan motors blowing and your compressor running.

Why is my AC not as cold as it used to be in my car?

The most common causes of broken air conditioning are leaks or compressor issues. If your air is blowing cool but not cold, the problem could be a clogged filter, cooling fan problem, radiator trouble, or it could simply be that you need to recharge your AC.

Do all refrigerators have coils?

Not all refrigerators have condenser coils in a location that can be accessed for cleaning by the owner of the fridge. Cleaning of the condenser coils is needed more often if you have pets that shed or if the area where the refrigerator is located is particularly dusty, such as a garage.

Do new refrigerators have coils?

Locate the coils, which live either at the bottom of the appliance or in back of it. Older models have exposed coils mounted on the back of the refrigerator. Newer models place the coils at the bottom behind a toe space panel (like the model below) or at the back behind a rear access panel.

Why is my refrigerator running but not cooling?

The most common reason why a refrigerator is not cooling is a problem with the evaporator coils. Over time, evaporator coils can become covered with ice, which prevents the coils from working properly. If the coils are covered in ice, the ice will need to be defrosted to fix the problem.

How long does it take evaporator coil to thaw?

Give the Frozen Evaporator Coils Time to Thaw Left to its own devices, it could take up to 24 hours for the coils to thaw completely. You can speed this process up somewhat with the help of a hair dryer, especially if you need your A/C unit up and running as soon as possible.

What happens when an evaporator coil gets dirty?

An extremely dirty evaporator coil can cause your AC to breakdown completely. This happens when condensation forms on the dirt and then freezes during the AC’s operation. The buildup of frost stops the heat transfer with the air in your home, which causes the air conditioner to stop cooling air at all.

What is the difference between an evaporator coil and a condenser coil?

The evaporator coil is the part of an air-conditioning system that removes heat and moisture from indoor air to cool it. The condenser coil takes that heat and releases it outside.

How do you clean an evaporator coil without removing it?

1. Screwdriver or Electric Drill. …
2. Evaporator Coil Cleaner. …
3. Spray Bottle or Garden Hose. …
4. Towel, Blow Dryer, or Hair Dryer. …
5. Step 1: Remove the Glove Box. …
6. Step 2: Access the Evaporator Coil. …
7. Step 3: Spray the Cleaner on the Evaporator Coil Through the Access Point. …
8. Step 4: Rinse the Evaporator Coil.

How much does it cost to replace a condenser coil?

The condenser coil usually costs about $400 to $1,200 to replace. Most HVAC pros charge in the range of $50 to $150 per hour.

How much is a new coil for AC unit?

Coil CapacityPart OnlyInstallation Cost1.5-2.0 ton$575 – $800$475 – $6502.5 ton$625 – $975$535 – $7503.0 ton$735 – $1,055$600 – $8353.5 ton$775 – $1,025$775 – $985

Is it bad if my evaporator coils and condenser coils don't match?

If your condenser and evaporator coils don’t match in size, it could lead to higher temperatures and humidity levels in the home. For example, an evaporator coil that is smaller than the condenser coils might, in some cases, provide better dehumidification but it can’t cool the home as well.

Do evaporator coils have SEER ratings?

The federal government requires that you have an air conditioner unit with a seasonal energy efficiency ratio (SEER) rating of at least 14. A SEER is an energy efficient ratio for all HVAC units. … This is because you can’t match an evaporator coil with a SEER 14 rating with a unit that has a rating of 13 or lower.
