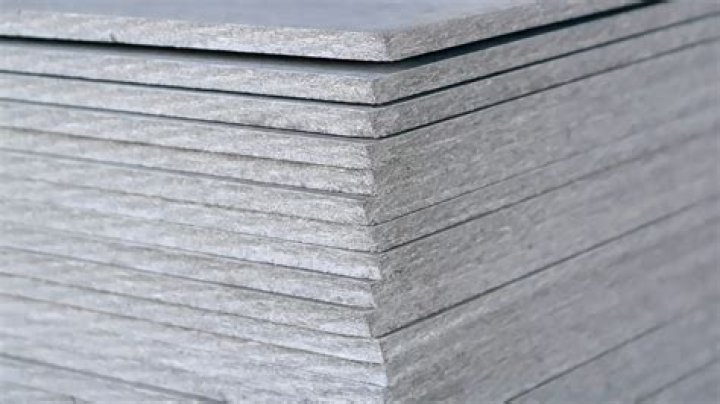

Cement board has a smooth side and a rough side. Face the rough side out if you will be using thin-set mortar adhesive to install the tile but the smooth side out if you will be using latex mastic.

Is there a front and back to cement board?

Cement board manufacturers imprint a gridlike pattern on one surface of the board. … Also, cement board typically has a label or manufacturer sticker on the front of the board. The back of cement board is plain, has no manufacturer-defining stickers and is void of the front-featured grid.

Which side of durock do you put tile on?

The smooth side is ideal for mastic applications, as it increases adhesive coverage. The textured side is ideal for mortar applications, as it enhances bonding and reduces tile slip. That said, mastic or thin-set mortar can be used on either side of the board without compromising performance.

Can you tile directly on cement board?

Cement board forms a durable, stable base for tile, and it has no organic materials (unlike drywall, greenboard, or plywood) so it is not prone to mold, rot, shrinkage, or decomposition due to moisture. Ceramic tile laid over cement board is one of the most durable floor or wall surfaces you can install.

Can you just screw down cement board?

Screw and Joints Do not use drywall screws as they are not recommended to be used to hold the backer board in place. All of your backer board pieces should be cut before they are placed on​ the floor. … It is important to highlight that screws shall not be installed all the way down to the floor joists.

Do I need to seal cement board before tiling?

Contrary to popular thought, tile and grout are not waterproof, and some moisture will penetrate even if sealant is used. … However, if you choose to use concrete backerboard, which is much stronger and more durable than gypsum board, a water vapor membrane must be placed underneath it or a sealant applied on top of it.

Should you wet cement board before tiling?

If you use cement backer board, you have to install a separate moisture barrier between the board and any wood it’s attached to. … Virtually every building code now shuns this product for use in wet areas. I would never install this product behind tiles that were subject to water splashing on them.

What side of PermaBase cement board faces out?

Install PermaBase with the printed side facing you. In typical situations, use two 3′ x 5′ boards horizontally for the tub back- wall, and one 3′ x 5′ board vertically at each endwall and ceiling. Cut cement board to size, attach to wall studs or ceiling joists using rec- ommended nails or screws.

How do you layout cement board?

#2 A cement backer board layout should be staggered. It’s kind of like building a wall of Lego’s. If you set each one directly on top of each other it is unstable. You create a stronger, more stable floor by staggering the backer board. Likewise, four corners of cement board should never meet at one point.

Does cement board need thinset under it?

Using thinset under cement board is a commonly skipped step amongst many contractors. … However, many manufacturers including, both Durock and Hardiebacker not only recommend that you use thinset under their backerboard, but they specify it and will void the warranty on their product if it’s not used.

Article first time published on

Should you tape cement board joints?

The thinset and mesh tape are to strengthen the seams. If you are going to tile over the cement board, you should tape the seams. This should not be that difficult.

Do you put thinset under cement board?

Use thin-set mortar when installing cement backer board. Thin-set dries slowly, allowing you to fix and readjust backer board sheets as needed. The ingredients in thin-set mortar ingredients are cement, fine sand and a water retaining agent. It’s used to bond ceramic or porcelain tile and cement backer board.

How do you fill gap between tub and cement board?

Technically, after the tile is installed over the backer board that gap between it and the tub ledge should be filled with an ASTM C920 sealant (caulking e.g. silicone). Although some say you should have weep holes along this gap so any water behind can weep out into the tub.

How far apart do you put screws in cement board?

Fasten HardieBacker cement board with specified nails or screws (as listed in “Materials Required”) every 8 in over the entire surface. Keep fasteners between 3/8 in and 3/4 in from board edges and 2 in from board corners.

What do I use to seal cement board before tiling?

The thin-set is a cement-based powder that you mix with water or latex additive to form a thick paste, which is used to seal the seams in the board and can also be used to set the tile. Finally, you’ll need an 8 x 12-ft. piece of 4-mil plastic sheeting and some straight 2x4s.

Do you need RedGard on cement board?

You really don’t need the RedGard, but the more protection the better…so go for it. And yes, you can do the boards beforehand. But, hit the filled seams & screws (your weak points) as soon as a panel is ready to give it some time to setup.

Do you need waterproofing over durock?

Water does not affect USG Durock® Brand Cement Board, however, TCNA guidelines recommend the use of a waterproof membrane in wet areas.

Which side of Hardibacker board goes down?

Either is acceptable, but we recommend that the smooth side with the nailing pattern of every 8″ on center go up.

Which side do you tile on Hardibacker?

Which side of HardieBacker should be tiled on? Either is acceptable, but we recommend the EZ grid® side of the 6mm board, and the smooth side of the 12mm board.

Is durock and PermaBase the same?

Permabase is National Gypsum’s product and it is very much like WonderBoard from Custom Building Products. Both of these boards are a cement and aggregate core with a fiberglass mesh “skin.” Durock from USG is a slightly lighter weight version of comparable construction methods.

Whats the difference between mastic and thinset?

Mastic is a non-cementitious material that exhibits some pros and cons compared to thinset. … Thinset is much stronger structurally than mastic and a waterproof product that will not lose strength when exposed to water. Thinset is the only product that I recommend be used in showers, bathrooms and even floors.

What kind of Thinset goes under cement board?

An unmodified thinset (Masterblend) is fine between the Hardi and the subfloor. The reason for the layer of thinset between the cement board and the subfloor is to fill the voids/gaps between the two. It’ll keep the cement board from moving up and down.

What goes under durock?

Subfloor should be minimum 5/8″ APA span-rated plywood or OSB with an Exposure 1 classification or better. Minimum 3/4″ APA span- rated plywood or OSB with an Exposure 1 classification or better. Cover base with USG Durock™ Brand Tile Membrane, 15 lb. felt or 4-mil polyethylene and attach with 1/4″ galvanized staples.

Can I use drywall mesh tape for cement board?

Apply Mesh Tape Paper tape simply won‘t hold up on cement board. Although paper tape generally leads to a cleaner finish on drywall, you can still achieve a smooth look if you use mesh tape on a drywall/cement board joint. Use this self-adhesive joint tape where cement board and drywall meet.

Can you walk on cement board after installation?

However, after you mount the backer board to the floor you simply have to seal the seams with mortar and wait until the mortar dries. This is normally 12 hours but may be up to 24 hours in some cases.

Can I use 1/4 cement board on floors?

1/4″ USG Durock® cement board is an ideal substrate for floor and countertop ceramic tile installations. The 1/4″ thickness helps eliminate transition trim when abutting carpet or wood flooring and minimize level variations with other finish materials.

Can you tile straight onto backer board?

As a building material, interior fibre cement tile backer board products are especially suited as a tiling base for tiling wet areas such as bathrooms, kitchens and showers as it is resistant to permanent water damage and does not need to be treated before tiling.

How do you use cement backer board?

1. Cut the Boards to Size. If you have any obstructions to work around, cut the cement backer board with a jigsaw fitted with a carbide blade before you lay down the boards.
2. Apply the Mortar. …
3. Position the Boards. …
4. Secure the Boards. …
5. Finish the Installation.
