When water stops flowing down the drain, gravity traps water in the curved section. This water serves as a barrier between the open drain of the sink (or shower, bathtub, etc.) and the rest of the sewer system for the house. Sewer gas rises, and the water in the p-trap prevents it from coming back up and out the drain.

Do drain pipes need to be angled?

The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically. Many drains either have too little slope or too much slope. … Why it’s costly: Without the proper slope, drain lines may clog more frequently.

What is the curved part of a sink drain called?

This pipe section is called the p-trap. You might wonder why it isn’t called the u-trap because of the shape of the curve.

Why do drains have an elbow?

That U-shape is called the P-trap Gravity traps an amount of water inside the bend after it goes down the drain, and this liquid plug serves as a block against sewer gas. … To fix this, run water down the sink for a few minutes to restore the plug.

Why are water pipes not straight?

That curved J-shaped pipe is known as the p-trap, and it serves the function of preventing sewer gas backflow from your drains. When water runs down your drain, it flows through the p-trap without obstruction, but when you shut off the water, a small amount of liquid remains in the p-trap.

What happens when you have too much slope in drain pipe?

It has to do with the water speed. The waste will get stuck in the line up if the water speed is too fast and the slope is too steep. You can either use a tie into a vertical drop or use a 45 degree slope.

Can you have too much slope in drain pipe?

The ideal drain pipe slope is 1/4” per foot, which is also the minimum per code for pipes 2-1/2” diameter or less. … But when a drain pipe or sewer line is sloped too steeply (1/2” per foot or more), it is just as likely to clog as an undersloped pipe because the liquids travel too fast and the solids get left behind.

Why do sinks need P traps?

The p-trap under sink plumbing pipe serves the function of capturing a small amount of water inside your drainpipes after the sink is used. This plug prevents sewer gases from coming up the wastewater line and out the sink.

Does a sink drain need a trap?

Beneath a kitchen or bathroom sink drain is a pipe with a sharp bend in it. … You must have a p-trap installed under your sink if you want your home to pass inspection in many places, where the building code requires them. Even if they are not required, you should understand the practical purpose for installing a p-trap.

Why is it called a Ptrap?

A P-trap gets its name because it combines two 90 degree joints with a horizontal overflow pipe and gives the entire unit the shape of the letter “P.” One of the 90 degree joints exits the drain of the sink and then is joined to another which contains a water seal system that allows for water to flow into the overflow …

Article first time published on

Is there always water in the p-trap?

In a nutshell, a p-trap is a u-shaped bend in the waste pipe that connects a sink’s drain to a home septic tank or to a municipal sewer system. Under normal circumstances, p-traps always contain some water.

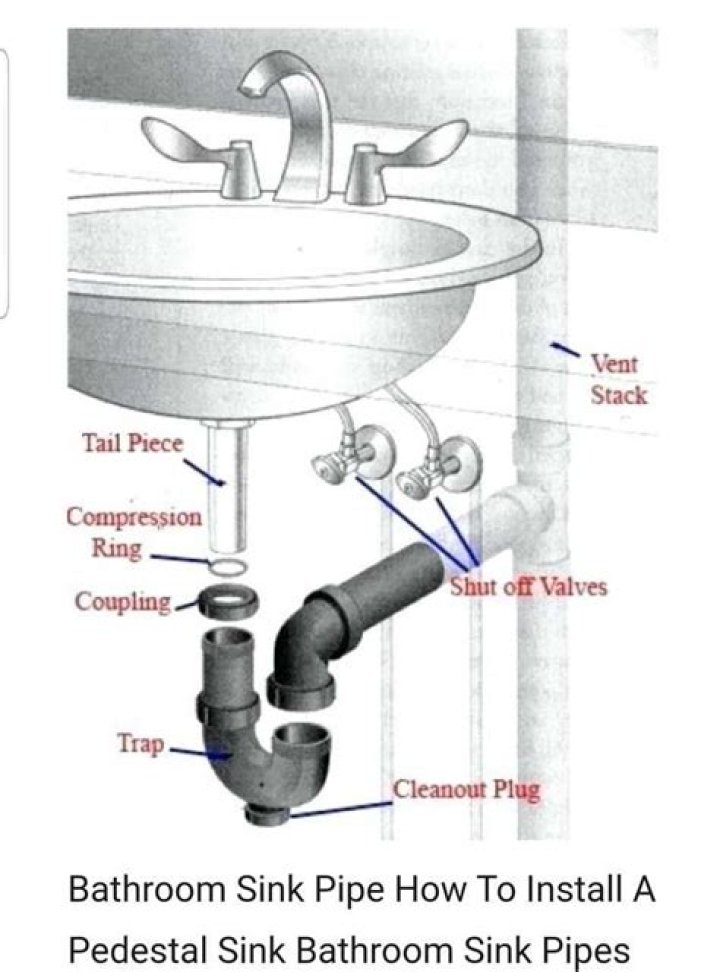

What is a tailpiece in plumbing?

The tailpiece, or sink tailpiece, is the straight section of pipe that connects to the bottom of the sink drain fitting. … Typically, the tailpiece attaches to the drain fitting with a slip nut—a threaded ring that can be tightened and loosened by hand (or with gentle persuasion from channel-type pliers).

Why does a sink need AU Bend?

Newcomers to bathroom plumbing sometimes ask, ‘why do I need a U bend? … The simple answer is that the water trapped in the U bend acts as a barrier to the foul smells that otherwise rise from the sewer or other drainage pipework. This is why it is an absolute requirement in the building regulations.

Can a sink drain go up?

As long as the sink drain and its vent are connected in a straight line, the drain can serve as a wet vent for the toilet. This means, however, that if there’s a blockage downstream of the sink, water can back up through the sink pipe.

Can you put a 90 in a sink drain?

It’s fine to have a larger-radius (sweep) 90-degree bend at the base of a vertical drainage stack where the wastewater starts to travel horizontally. It’s also a good idea to have a sweep 90-degree fitting where a drain pipe pops out of a wall for a kitchen, vanity or laundry sink.

What is the correct fall for underground drainage?

Here is some common guidance for ensuring compliance when installing your pipes: Foul water pipe gradients must ensure wastewater velocity of 0.7m/s at minimum. For less than 1l/s, a fall of 1:40 (25mm per metre) is appropriate. For discharge from any WC, a fall of 1:80 (12.5mm per metre) is recommended.

What is a 1% slope for drainage?

All of your drain pipe (with one exception) must slope slightly downhill. Usually 1/8″ per foot is plenty for drainage, this is the same as the commonly recommended 1% slope. Note that I said the drain pipe must be sloped rather than the French drain.

How long can a sink drain pipe be?

Maximum Distance According to the International Residential Code, the maximum vertical distance between the sink drain and the entrance to the p-trap is 24 inches.

How much should the ground slope away from a house?

Ideally, the ground should drop one inch for every one foot that you move away from the house for the first 5-to-10 feet around your house. While this is not always possible, the ground should never be sloping upwards as you move away from your house foundation.

What is the typical slope of a plumbing drain line?

Pipes must slope slightly downhill to drain properly. The standard slope is anywhere from ¼ inch to 3 inches per foot depending on the use. An accurate calculation is essential for properly functioning plumbing.

How much drop should a drain pipe have?

PIPE DIAMETERMINIMUM SLOPE2 1/2″ or smaller1/4″ per foot3″ to 6″1/8″ per foot8″ or larger1/16″ per foot

What does a Ptrap do?

A P-trap Prevents Odors The curve in P-Trap always retains water. Water is trapped at the bottom of the curve — hence the name. This small volume of water prevents sewer gases from entering your bathroom, sparing your nose from nasty odors and protecting your health.

Should all drains have ap trap?

According to regulations, all shower drains are required to have P-traps. This includes all fixtures connected to a building’s main plumbing system. P-traps are curved pipes installed under showers and drains of all kinds.

Where is the sink trap?

Also known as a “P-trap,” a sink trap is a curved length of pipe located below the drain. If you follow the drain pipe from the bottom of the drain to the wall, this bend should be relatively in the middle, underneath the sink.

What is the best liquid to unclog a drain?

Best Overall Drain Cleaner: Drano Max Gel Liquid Clog Remover. Best Drain Cleaner for Hair Clogs: Liquid Plumr Clog Destroyer + Hair Clog Eliminator. Best Enzymatic Drain Cleaner: Bio Clean. Best Monthly Build-up Remover: CLR Clear Pipes & Drains.

What is a drain P-trap?

The P-trap traps solids that can clog the drain or sewer line. The P-trap stops sewer gases from backing into your home through the drain line.

Why are Bell traps prohibited?

The IPC prohibits bell traps becahse in the way they are designed, they tend to clog with debirs and their trap seal has a larger exposed surface area which accelerates evaporation.

Why does my p-trap smell?

A P-trap is the curved portion of pipe under the sink. It’s supposed to create a seal by holding water, which prevents sewer gases from getting into the bathroom. If the P-trap isn’t working properly, sewer gasses can make their way into the bathroom and cause your sink to stink.

Does p-trap need to be below drain?

It is not ideal to have the p-trap below the the exit drain because water gravity has to force the water out instead of it flowing downwards naturally. They both work and have seen it many times. But essentially anything below already creates its own p-trap- so using another is redundant.

Why does my bathroom sink have 2 drains?

In two drain line systems, one of the drain lines disposes of garbage water. The other one is installed as a vent. By the plumbing rules, the left drain is used as a vent. Comparing it with a single drain line system this vent is not needed anymore.

Does it matter which way the P trap goes?

In a Shower P-Trap, Can the Lower Curvature Be Backward? When you cement it together, the straighter side of the trap– which is not as curved- should be what the 90 degree piece is glued onto. Then the curved end should be connected to the shower drain. However, gluing the P-trap shouldn’t affect the drainage.
