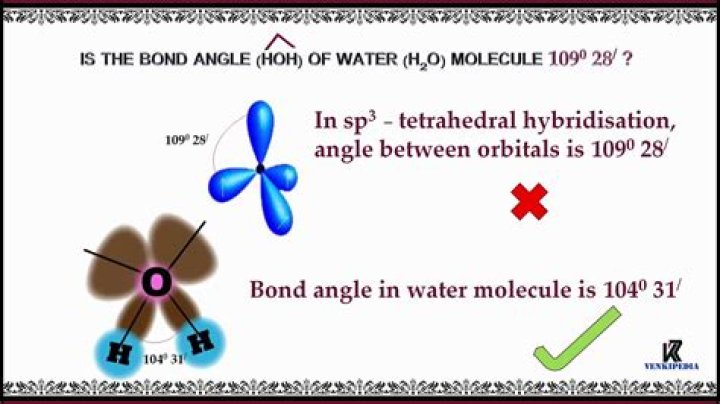

Since they take up more volume of space compared to a bonding pair of electrons the repulsions between lone pairs and bonding pairs is expected to be greater causing the H-O-H bond angle to be smaller than the ideal 109.5°.

How does the bond angle of H2O differ from the expected angle?

There is a surprisingly large difference between this and the bond angle in H2O. The H2O bond angle is 104.5°. There is greater distortion than in NH3 because there are two lone pairs on the oxygen. The H2S bond angle is 92.2°.

Why is the H-O-H bond angle in a water molecule H2O smaller than the H C H bond angle in methane ch4 )?

The H—C—H bond angle in methane is the tetrahedral angle, 109.5°. This angle is obtained when all four pairs of outer electrons repel each other equally. The bond angles in ammonia and in water are less than 109.5° because of the stronger repulsion by their lone pairs of electrons.

Why the bond angle in water is lesser than expected value?

Lone Pairs Occupy More Space than Bonding Pairs In the case of water, the two lone pairs push the bonding pairs closer together, yielding a smaller bond angle. … The VSEPR Model does not allow one to predict how much smaller the bond angle will be, only that the the HOH bond angle is < 109.5°.

Which factors causes the H-O-H angle of water to be approximately 104.5 rather than the 109.5 angle seen in a perfect tetrahedron?

This is because lone pairs are closer to the central (oxygen) atom whereas bond pairs – which are shared among the oxygen and hydrogen atom, are further away from the central atom. Hence the bond angle of water is 104.45, and the shape of the water molecule is bent.

Why is the bond angle of H2O greater than F2O?

Both H2O and F2O have a lone pair of electrons. But fluorine being highly electronegative, the bond pair electrons are drawn more towards F in F2O, whereas in H2O it is drawn towards O. So in F2O the bond pairs being displaced away from the central atom has very little tendency to open up the angle.

What is bond angle of H-O-H in H2O molecule?

d. The H-O-H angle in water molecule is about 105∘( due to two lone pair of electron ).

Why is the bond angle in H-O-H deviate from the ideal tetrahedral bond angle?

Even so, the bond angle in ammonia (107 degrees) is slightly less than the regular tetrahedral angle (109.5 degrees) because the hydrogen atoms are repelled by the lone pair of electrons on the nitrogen atom.

Why bond angles in some molecules are less than expected values?

Bond angles will deviate from their ideal values according to the rule that lone pairs repel other electrons more strongly than bonding pairs. … Being closer to the central atom causes lone-pairs take up more of the available ‘bonding space’.

Why is bond angle of water less than ammonia?

Since the repulsions on the bond pairs in H2O molecule are greater than that in NH3, the bond angle in water is less than that of ammonia. Although geometries of NH3 and H2O molecules are distorted tetrahedral, bond angle in water is less than that of ammonia.

Article first time published on

What is different about ammonia and water compared to methane How do you illustrate this?

Comparing the three Lewis dot structures, methane has all four of the electron pairs bonded to H atoms. Ammonia has three of the electron pairs bonded to H atoms. Water has only two electron pairs bonded to H atoms.

Why is bond angle in ammonia less than the tetrahedral bond angle?

In NH3, there are 4 electron pairs (3 bonding pairs & 1 lone pair) in the outer most shell of N. The repulsion between lone pair and a bond pair of electrons always exceeds to that of two bond pairs. Thus the bond angles are reduced from 109.27′ to 107.48′.

Why does the bond angle go from 104.5 to 109.5 when water freezes to form ice?

Despite being sp3 hybridised, due to lone pair – lone pair repulsion, tetrahedral angle would be reduced and as a result we get an angle of 104.5 degree. This repulsion also leads to bent shape of water Molecule instead of tetrahedral shape. Hope this helps.

Why is the bond angle in H2O less than 109.5 o and not 109.5 O?

“Why does water not have a 109.5∘ H-O-H bond angle? ” It’s because the two nonbonding 2p orbitals on oxygen impose a spatial repulsion, bending together the two hydrogens and decreasing the bond angle, which is measured such that it is ≤180∘ .

Why is the H-O-H bond angle?

In terms of repulsion, lone pair-lone pair repulsion is higher than any other repulsion. So, bond pair-bond pair repulsion and lone pair-bond pair repulsion is lower than lone pair- lone pair repulsion. … So, that is the reason why Water has H-O-H bond angle of \[104.5{}^\circ \] and not \[109{}^\circ 28’\].

Why H2S and H2O have different bond angles?

H20 have greater bond angle than H2S because in H20 ; the electronegativity of sulfer is less than oxygen; bond pair of electron drawn more toward ‘o’then’s’. The central atom has little tendency to open up the angle IN H2S then H2O..

Why bond angle of H2O is higher than H2S?

Bond angle of H2O is larger because oxygen is more electronegative than sulphur therefore bond pair electron of O–H bond will be closer to oxygen and there will be more bond-pair bond-pair repulsion between bond pairs of two O–H bonds.

Which of H2O and F2O will have the larger XOX bond angle?

Hence, H2O will have the larger X-O-X bond angle. Solution: Fluorine is the most electronegative halogen, so it will draw electron density in the P-F bond away from P atom; repulsion of the P-F bonding pairs will be less than the repulsion of P-Cl and P-Br bonding pairs, so the F-P-F bond angle will be the smallest. 5.

Which has greater bond angle H2O or OCL2?

But in the case of Cl2O, the larger Cl atoms attached to oxygen will occupy more space and the bond angle increases due to increased bond pair bond pair repulsion in Cl2O as compared to that in H2O. Hii,,to find bond angle you must have to follow 3 rules . OCL2 has greater bond angle then OF2.

Which hydrogen bond is strongest?

The hydrogen bonding created by H-F is the strongest because fluorine has the highest electronegativity in the periodic table. It looks somewhat like this. The hydrogen bonding created by H-F is the strongest because fluorine has the highest electronegativity in the periodic table.

What causes differences in bond angles?

Many factors lead to variations from the ideal bond angles of a molecular shape. Size of the atoms involved, presence of lone pairs, multiple bonds, large groups attached to the central atom, and the environment that the molecule is found in are all common factors to take into consideration.

What makes a bond angle smaller?

Lone pair repulsion: Bond angle is affected by the presence of lone pair of electrons at the central atom. A lone pair of electrons at the central atom always tries to repel the shared pair (bonded pair) of electrons. Due to this, the bonds are displaced slightly inside resulting in a decrease of bond angle.

What makes water molecules have a bent shape?

Water is a simple molecule consisting of one oxygen atom bonded to two different hydrogen atoms. Because of the higher electronegativity of the oxygen atom, the bonds are polar covalent (polar bonds). … The molecule adopts a bent structure because of the two lone pairs of electrons on the oxygen atom.

Why are the bond angle values different for methane ammonia and water even though the central atom is sp3 hybridised in all three?

Due to the presence of lone parir in Ammonia(Nitrogen), the bond angle is reduced as due to greater repulsion, whereas in methane(Carbon) there exist no lone pair to repel.

Why do molecules H2O and NH3 bond angles deviate from expected angles?

H2o contains two lone pairs where as NH3 contains only one lone pair. As we all know that lone pairs are responsible for the repulsions with in the molecule that causes to reduce the bond angle. … Due to one lone pair bond angle decreases to 107.8). So, the bond angle of NH3 is greater than the bond angle of H2o.

Why is the geometry of water distorted instead of tetrahedral?

According to this theory, we can find out the geometry of molecules by the number of electron pairs surrounding their central atom. In water molecules, as we know there are 2 hydrogen atoms and one oxygen atom. … Therefore, water has a bent structure and thus it is considered as a distorted tetrahedral.

Why does water show distorted in geometry?

In H2O there are two lone pairs and two bond pairs. The two lone pairs present in the oxygen atom of H2O molecule repels the two bond pairs. This repulsion is stronger than the repulsion between the lone pair and the three bond pairs on the nitrogen atom.

Why shape of ammonia is pyramidal but that of water is bent Class 11?

NH3 has pyramidal shape and H2O hasbent shape. … O in H2O is the central atom of the molecule and have 2 lone pairs. Due to the presence of 2 lone pairs the lone pair-lone pair repulsion occurs due to which the bond angle between the H atoms decreases. Thus bond angle in NH3 is greater than bond angle in H2O.

Why do methane ammonia and water have different boiling points?

But in ammonia N-H bonds are polar, so ammonia is a polar compound and the ammonia molecules are joined to each other by hydrogen bonds. So,methane has less boiling point than ammonia. Polar bonds are stronger than non-polar bonds. All C-H bonds in methane are non-polar that means methane is a non-polar compounds.

How are the shapes of methane ammonia and water similar?

As for methane and ammonia, the domain geometry for a molecule with four electron pairs is tetrahedral. In the water molecule, two of the electron pairs are lone pairs rather than bonding pairs. The molecular geometry of the water molecule is bent.

When comparing methane and ammonia what intermolecular force is most important?

Hydrogen bond are stronger than Van der Waals forces therefore both NH3 and H2O will have higher boiling points than CH4. O has a smaller atomic radius than N, as O has a more positive nucleus, but the valance electrons in both N and O are in the same princible energy level (2p).
