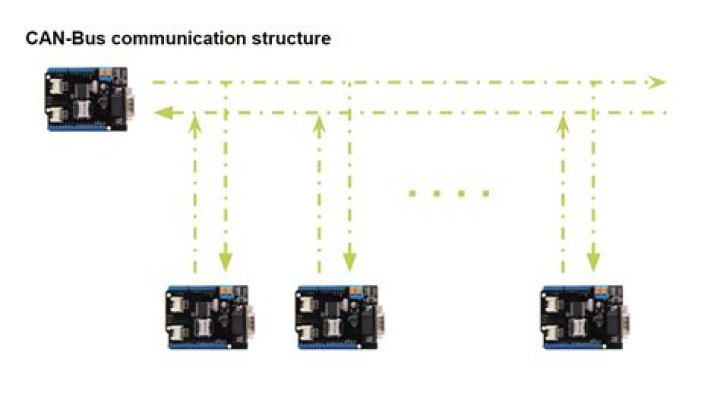

How Does CAN Messaging Work? Devices on a CAN bus are called “nodes.” Each node consists of a CPU, CAN controller, and a transceiver, which adapts the signal levels of both data sent and received by the node. All nodes can send and receive data, but not at the same time. Nodes cannot send data directly to each other.

How do CAN bus nodes communicate?

Each node is able to send and receive messages, but not simultaneously. A message or Frame consists primarily of the ID (identifier), which represents the priority of the message, and up to eight data bytes. A CRC, acknowledge slot [ACK] and other overhead are also part of the message.

How does CAN protocol work?

The CAN protocol is a set of rules for transmitting and receiving messages in a network of electronic devices. … Every electronic device (or node) that communicates via the CAN protocol is connected with one another through a common serial bus, which allows for the transfer of messages.

CAN bus working principle?

The CAN communication protocol is a carrier-sense, multiple-access protocol with collision detection and arbitration on message priority (CSMA/CD+AMP). CSMA means that each node on a bus must wait for a prescribed period of inactivity before attempting to send a message.

How does CAN bus send data?

How Does CAN Messaging Work? Devices on a CAN bus are called “nodes.” Each node consists of a CPU, CAN controller, and a transceiver, which adapts the signal levels of both data sent and received by the node. All nodes can send and receive data, but not at the same time. Nodes cannot send data directly to each other.

CAN bus data analyzer?

The CAN BUS Analyzer Tool is intended to be a simple-to-use, low-cost CAN Bus monitor which can be used to develop and debug a high-speed CAN network. The tool features a broad range of functions which allow it to be used across various market segments including automotive, marine, industrial and medical.

CAN bus serial communication?

The CAN bus is a serial, multi-master, broadcast bus where each transceiver’s bus driver is internally connected to its receiver, and then to every other receiver on the transmission line.

CAN bus frequency?

2.0A sometimes known as Basic or Standard CAN with 11 bit message identifiers which was originally specified to operated at a maximum frequency of 250Kbit/sec and is ISO11519. 2.0B known as Full CAN or extended frame CAN with 29 bit message identifier which can be used at up to 1Mbit/sec and is ISO 11898.

CAN bus sensors?

A Controller Area Network (CAN) bus device is an Electronic Control Unit (ECU), sensor, or other microprocessor based control, also known as a node, in a CAN network.

CAN bus system wiring?

CAN bus uses two dedicated wires for communication. The wires are called CAN high and CAN low. When the CAN bus is in idle mode, both lines carry 2.5V. When data bits are being transmitted, the CAN high line goes to 3.75V and the CAN low drops to 1.25V, thereby generating a 2.5V differential between the lines.

Article first time published on

CAN bus voltage?

Value should normally be in between 2.5 and 3.5 Volts. Measured on a machine that is running, it will usually range between 2.7 and 3.3 Volts. Value should normally be in between 1.5 and 2.5 Volts. Measured on a machine that is running, it will usually range between 1.7 and 2.3 Volts.

How does CAN work what are the features of CAN?

With the CAN protocol, a single wire connects all of the electronic systems, actuators, and sensors in the vehicle into one circuit that facilitates high-speed data transmission between all components. The first vehicle to use CAN bus wiring was the BMW 850 coupe released in 1986.

CAN bus prioritization?

CAN data transmissions are distinguished by a unique message identifier (11/29 bit), which also represents the message priority. A low message ID represents a high priority. High priority messages will gain bus access within shortest time even when the bus load is high caused by lower priority messages.

CAN communication protocol tutorial?

The CAN Bus Protocol Tutorial gives an overview of the ISO 11898-1 and ISO 11898-2 controller area network standards. This tutorial provides a great introduction to the fundamentals of CAN (controller area network) as it is used in automotive design, industrial automation controls, and many more applications.

CAN protocol programming?

CAN stands for Controller Area Network. It is a serial communication technology used for data exchange between ECUs connected on a linear bus. I have designed this course for all those who are beginners for the CAN protocol and want to gain a better understanding of CAN communication protocol.

CAN bus communication without transceiver?

Connection of CAN nodes without CAN transceiver As no CAN transceiver is used, the maximum wire length is limited (<<1m) and disturbances due to noise can occur. If these aspects are respected, this structure can easily be used to connect two or more controller devices via one signal line.

CAN explained?

The Controller Area Network (CAN bus) is the nervous system, enabling communication. In turn, ‘nodes’ or ‘electronic control units’ (ECUs) are like parts of the body, interconnected via the CAN bus. Information sensed by one part can be shared with another.

CAN protocol arbitration?

The message arbitration (the process in which two or more CAN controllers agree on who is to use the bus) is of great importance for the really available bandwidth for data transmission. Any CAN controller may start a transmission when it has detected an idle bus.

CAN bus monitor tools?

The CAN BUS Analyzer Tool is a simple to use low cost CAN bus monitor which can be used to develop and debug a high speed CAN network. The tool supports CAN 2.0b and ISO11898-2 and a broad range of functions which allow it to be used across various market segments including automotive, industrial, medical and marine.

CAN bus capture?

Capturing CAN Bus Traffic The capture is initialized by selecting the appropriate capture interface. Upon selecting the interface, initial capture parameters need to be provided. Setting only the appropriate bitrate is sufficient. The CAN bus interface is opened automatically when the capture starts.

CAN bus microcontroller?

As a result, there is a range of microcontrollers, from small 8-bit to high-end 32-bit parts, that target this large and receptive crowd via the CAN bus, a vehicle bus standard designed to allow microcontrollers and devices to communicate with each other within a vehicle without a host computer.

CAN bus bandwidth?

The maximum speed of a CAN bus, according to the standard, is 1 Mbit/second. … Low-speed CAN (ISO 11898-3, see above) can go up to 125 kbit/s. Single-wire CAN can go up to around 50 kbit/s in its standard mode and, using a special high-speed mode used e.g. for ECU programming, up to around 100 kbit/s.

CAN bus data frame?

The data frame is the standard CAN message, broadcasting data from the transmitter to the other nodes on the bus. A remote frame is broadcast by a transmitter to request data from a specific node. An error frame may be transmitted by any node that detects a bus error.

CAN controller can FD?

CAN FD (Controller Area Network Flexible Data-Rate) is a data-communication protocol typically used for broadcasting sensor data and control information on 2 wire interconnections between different parts of electronic instrumentation and control system. This protocol is used in modern high performance vehicles.

Can bit stuffing error?

A Stuff Error occurs whenever 6 consecutive bits of equal value are detected on the bus. Whenever a transmitting device detects 5 consecutive bits of equal value, it automatically inserts a complemented bit into the transmitted bit stream. This stuff bit is detected and automatically removed by all receiving devices.

Why are CAN bus wires twisted?

The wires are twisted because the signals transmitted on the wires are made from measurements on both wires, therefore when the wires are twisted together they are both subject to the same interference and the chance of discrepancy is greatly reduced.

CAN bus resistor?

A CAN Bus network must have a terminating resistor between CAN High and CAN Low for it to work correctly. For maximum range over long distances, the ideal termination is one 120 Ohm resistor at each end of the bus, but this is not critical over short distances.

WHY CAN bus terminating resistor?

Terminal resistors are needed in CAN bus systems because CAN communication flows are two-way. The termination at each end absorbs the CAN signal energy, ensuring that this is not reflected from the cable ends. Such reflections would cause interference and potentially damaged signals.

CAN bus over power line?

The DCAN500 device for CAN-BUS communication over noisy power lines (DC-CAN), supports CAN A/B protocols at speed up 500kbit/s. Multiple CAN networks may share a common DC or AC powerline where each network uses a different carrier frequency. The device avoids complex cabling, saves weight, and simplifies installation.

Is CAN bus digital or analog?

Isolated Controller Area Network (CAN) | Analog Devices.

CAN bus functional safety?

The CAN Safety Message is a safety protocol extension applicable to all three major industry protocols (SAE J1939, ISOBUS and CANopen). It raises the reliability of safety-relevant CAN-BUS messages above the requirement for Safety Integrity Level (SIL) 2 certification according to IEC 61508:2010.
