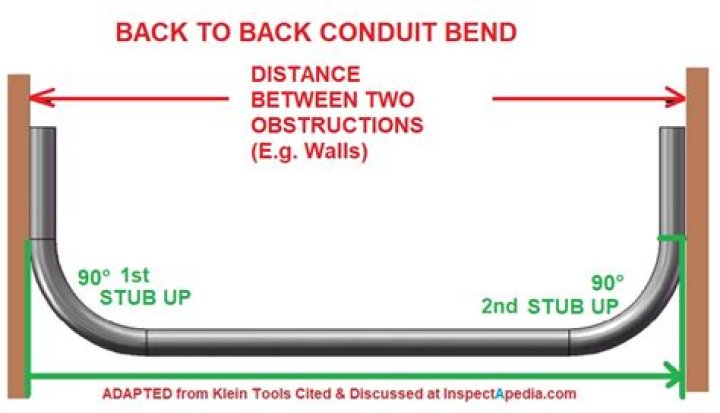

A back-to-back bend results in a “U” shape in a length of conduit. It’s used for a conduit that runs along the floor or ceiling and turns up or down a wall. Step One: After the first 90˚ bend is made, determine the back-to-back length and mark on EMT.

What is a Chicago bender?

A Chicago bender is a manual mechanical conduit bender that gets it’s name from…well… I don’t know. It’s just trade slang for this type of bender. These types of benders are primarily used for RMC (rigid metal conduit) or IMC (intermediate metal conduit), not EMT (electrical metallic conduit).

What offset bend means?

Offset bends are used to move a run of conduit from one plane to another. An offset is normally used to bend the conduit around an obstruction, or to relocate the conduit close to a structural member to make it easier to fasten the conduit.

What are the different types of conduit bends?

There are three basic bends that are commonly used: the 90° bend, the common offset, and the saddle. A more advanced type of bend called a concentric bend is discussed in a separate article.

What is a 45 degree bend?

The Bend 45 is a Silent Plus SWR pipe fitting connecting two sewage pipes or pipes with fittings in the plumbing system. It is a connection fitting with a specific degree of diversion that directs the flow of discharge water between two pipes/fittings at a 45-degree angle.

Can you bend rigid conduit with a hand bender?

Rigid and IMC conduit are the hardest raceways to bend because they have a much thicker and harder wall. ½” and ¾” rigid or IMC can be bent by hand using a hickey (or segment bender). … Use an EMT bender to bend 30° kick in the PVC conduit by bending it to 60° and then the conduit will spring back to 30°.

Is IMC threaded?

Allied IMC uses the same threaded couplings and fittings as RIGID conduit, and the 3/4″ NPT threads (ANSI B1. 20.1) are also full cut and galvanized after cutting.

How do you measure conduit bends?

On the conduit, measure from the free end to be bent up the calculated number and mark the conduit. As an example, to bend 3/4” EMT conduit have a free end height of 8.5”, the table indicates to subtract 6” from the 8.5” which leave 2.5” from the end to bend up to make the mark.

What are the 4 types of bends?

Most tubes, though, are bent one of four ways: ram-type bending, roll bending, compression bending, or rotary draw bending.

Can electrical conduit bend?

You can bend conduit to fit many angles and work it around corners, under or over ceilings, and past other permanent structures. The hardest part of bending conduit is getting the proper measurements and applying just the right amount of pressure to make a good bend.

Article first time published on

How long is a 2 inch EMT 90?

Trade SizeMetric DesignatorOffset (B)*25315302 1/2638792 1/26310412 1/2631187

Why is offset bending important?

One of the more common bends made in electrical conduit is the offset bend: a technique used to move a run of conduit a set distance to one side, up or down. … Fewer degrees of bend also result in an easier pull when it comes time to pull wire into the conduit—always a good thing.

What is conduit bending?

Conduit bending is truly one of the fundamental tasks of the electrical construction industry. Whether EMT, galvanized rigid steel conduit, or intermediate conduit, you will need to bend it. Bends will be required as part of your installation.

What is the tool used to bend conduits?

Hydraulic benders are for rigid conduit with force provided by manual or electric hydraulic pumps. Electric benders, available in various sizes and models, are for high-production bending.

What is a saddle bend?

Three bend saddles are often used to cross or saddle a small obstruction that would prevent the electrician from installing conduit in a straight line. … Measure the distance from the end of the conduit to be bent to the center of the object to saddle.

What are the multipliers for offsets?

The distance between bends found by multiplying the height of the offset by the cosecant of the angle is a method given in many popular handbooks, manuals, and references. This is where the multipliers of 6 for 10 degrees, 2.6 for 22.5 degrees, 2.0 for 30 degrees, 1.4 for 45 degrees, and 1.2 for 60 degrees come from.

What is the multiplier for a 22 degree bend?

Degree of BendMultiplier10 degrees6.022 degrees2.630 degrees2.045 degrees1.4

How do you match kicks in conduit?

1. Parallel at all points along the conduit.
2. Spacing between conduits should be equal.
3. Centers of the bend, or kick, should align.

What is gain in conduit bending?

Gain: The amount of pipe gained (saved) by bending on a radius and not at right angles. Kick: A bend of less than 90 degrees placed in a conduit to change direction. Leg Length: The longest part of a ninety degree bend.

How do you find the center of bend on conduit?

The level or straight edge is then placed along the other side of the bend, similar to the placement for the first line. A second line is then drawn on the conduit along the edge of the level or straight edge. If the bend in the conduit is small, the two lines should cross. This point is the center of the bend.

What is yellow EMT used for?

Commonly used colored conduit applications are: Red – Fire alarm Blue – Data communications Green – Health care purposes Yellow – High voltage Orange – Fiber optic Black – Architecture White – Architecture System grounding and electromagnetic interference shielding – Nucor Tubular Products’s Color EMT not only protects …

Is IMC The same as EMT?

IMC vs. EMT is commonly used for branch circuit wiring in homes (where the wiring runs are exposed) and in commercial buildings. … In residential wiring, IMC is usually limited to service entrance assemblies and exposed runs to and from exterior service panels. Otherwise, EMT is the standard for household installations.

Is IMC conduit explosion proof?

These devices are designed to stop or localize explosive gases from traveling through the conduit. … Rigid steel conduit and couplings are listed to UL Safety Standard #6 and IMC is listed to UL Safety Standard #1242.

What is the toe of the bender?

The “toe” of the bender is to the left of the picture and the “heel” is to the right. The heel has a foot pedal on it, where foot pressure is applied when used in the upright position.

Can you bend pipes?

The simplest applications involve bending by hand, such as bending a copper tube around your knee, as well as using simple manual pipe benders and tube benders. Draw bending tends to be more effective on tubing with thicker walls or made of stiffer material such as steel.

When would you use a hand bender?

Hickeys are 60% smaller then benders allowing the user to make very tight bends close together. As a rule of thumb, you would use a hand bender the majority of the time and save the hickey for when you have to make a number of very tight bends that a hand bender simply couldn’t do.

What is the take up allowance for a 1 EMT bender?

Using the table above we know the take up for 1/2 inch EMT is 5 inches.

What is the combination of bends between pull points?

National Electrical Code or NEC limits the total number of bends in one continuous run to 360 degrees or four 90 degree bends. It specifically states, “There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.”

What are two types of tubing benders?

The four main types of pipe and tube benders are hydraulic, electric, manual and mechanical. Extremely sturdy and high powered, a hydraulic bender can create precise angles in larger pipes (as large as 4 inches in diameter) with thicker walls.

What is CLR in tube bending?

When referring to the radius of a die, we are referring to the center-line radius (CLR) that results from bending. CLR is the distance from the center of curvature to the centerline (axis) of the pipe.
