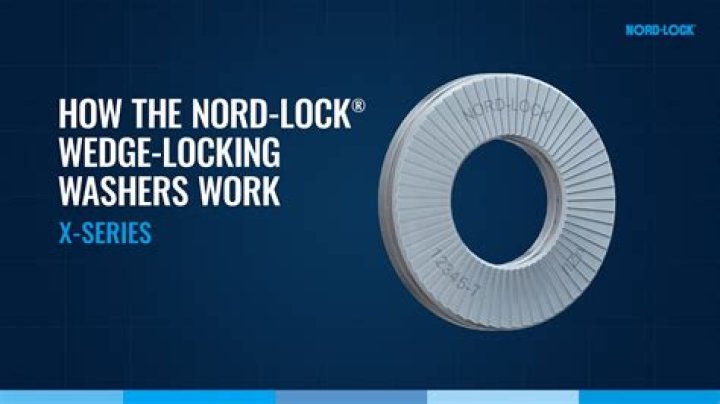

A wedge washer is engineered with the same wedge-locking design as a standard washer, but with a beveled washer design that enlarges the outer diameter of the washer. … Additionally, wedge lock washers provide the perfect locking solution for softer materials, large or slotted holes and painted or sensitive areas.

What is the point of a lock washer?

Lock washers are designed to be tightened to a required torque beneath an ordinary fastener. They exert a spring tension that keeps the fastener from vibrating loose. They are often attached to the nut side of the fastener.

Where can you use a split lock washer?

Split ring washers use friction to prevent bolted joints from loosening. They feature a ring that has been split and twisted – creating two sharp edges. These washers are installed between the bolt head/nut and mating surface, the bolted joint is then tightened in the same way as an unsecured bolt.

Are there different grades of lock washers?

The term “lock washer” can include a huge variety of different products used in many different applications that often are very specific and can include many different grades, materials and purposes. … Due to this, there is currently no ASTM specification that covers a generic split lock washer.

Do you use a lock washer with a lock nut?

Locking Washers Place the lock washer between the nut and the work surface if using a nut-and-bolt configuration, or between the fastener head and the work surface if using a tapped hole configuration. In other words, the bolt goes straight into the hole and doesn’t poke out the other end, so no nut is used.

What is a crush washer?

Crush washers are the type of washer that goes around a bolt, not a washer like the machine next to the dryer for your clothes. They’re made of a fairly soft metal that deforms into place to help provide a better seal. You might have them on your sparkplugs or oil pan plug on your car.

Which side should a spring washer go?

Spring washers should be used on the nut side of the fastener. If an additional washer is required to spread the load (as in our image above) it should be used between the spring washer and the mounting surface, i.e. the spring washer should be positioned next to the nut.

Should a flat washer be used with a spring washer?

The order should be bolt head, flat washer, materials being clamped, flat washer, spring washer, nut. If you only have one flat washer per bolt, and if the material next to the bolt head is sufficiently hard to resist deformation, then the one flat washer should be on the nut side.

Can you reuse a lock washer?

Can lock washers get reused? … Internal and external tooth lock washers cannot typically get re-used as they have teeth that get bent when installed. Split ring lock washers can be reused.

Are spring washers and lock washers the same thing?

Washer types. … Spring washers, which have axial flexibility and are used to prevent fastening or loosening due to vibrations. Locking washers, which prevent fastening or loosening by preventing unscrewing rotation of the fastening device; locking washers are usually also spring washers.

Article first time published on

What are the strongest washers?

Washer Materials and Types Carbon steel is stronger than stainless steel, but stainless steel will not rust or corrode like carbon steel can. Other metal washers include zinc, copper, brass and iron. You can also find specialty washers, such as plastic washers, rubber washers, ceramic washers and phenolic washers.

How do I tell what grade my washer is?

How to measure: Note that the inside diameter(ID) is typically 1/16” bigger than the bolt size that they fit for sizes 1” and smaller. For sizes 1 1/8” and larger the ID is 1/8” bigger than the bolt size that they fit. IE, a 1/2” washer has a 9/16” ID and a 1 1/8 washer has a 1 1/4” ID.

Do I need a flat washer with a lock washer?

Should I use a flat washer with a lock washer? – Quora. It’s useless if you do. A lock washer is designed to press into the surface of the nut and whatever is being fastened. Flat washers spread out the load of the tension to prevent pull through or bending whats being fastened, but makes lock washers useless.

Which goes first flat washer or lock washer?

When used correctly, a lock washer will hold the nut or other threaded fastener in place. To help it accomplish this, put the lock washer on first, below the fastener. If your project calls for other washers or hardware elements, they should go on before the lock washer so that it can hold them in place.

Does the washer go next to the nut or bolt?

If there is only one washer used with a nut/bolt, it usually goes on the nut side. The nut in most circumstances is more movable, and is more commonly turned to tighten the assembly. The washer helps prevent damage to the surface of the object being fastened.

Which is better lock nuts or lock washers?

Lock washers are a one time deal, replace after removing. The most common split lock washer actually bites into both the nut and bottom surface to provide the lock. Nylon lock nuts work best in high vibration areas but are a pain to assemble and like Brad said deteriorate over time.

Can you use a lock washer with a nylon nut?

When you install the nylon lock nut onto a bolt or threaded stud, the nylon insert wraps around the threads and locks the nut in place. This gives a nylon lock nut a distinct advantage over a lock washer when the bolt or threaded stud is subject to vibration, as the nylon lock nut is unaffected by vibration.

Do lock washers need to be replaced?

Also known as K-Lock nuts, Keps are similar to Sems in that they are nuts with pre-assembled lock washers (usually external tooth but sometimes conical). … But if either the nut or washer is damaged, both must be replaced.

Why do you need a washer with a nut?

Load Distribution The primary purpose of most washers is to evenly distribute the load of the threaded fastener with which they are used. … Washers reduce the risk of such damage by evenly distributing the fastener’s load across the surface of the material.

What does a nut do?

A nut is a type of fastener with a threaded hole. Nuts are almost always used in conjunction with a mating bolt to fasten multiple parts together.

What is a star washer?

Star washers are a specific type of washer designed to increase locking force by resisting torque applied by the nut, preventing it from unscrewing or separating. Featuring either internal or external tabs, star washers offer greater application suitability.

Does Walmart have crush washers?

20pcs Engine Oil Crush Washers Drain Plug Gaskets 12mm ID. 18mm OD. Bronze Tone for Auto Car – Walmart.com.

How tight should crush washers be?

With a good crush washer, tightening about a quarter turn past where you start to feel resistance will usually do the job.

What is a tab washer?

Tab washers are a mechanical locking solution that secure bolted joints using a physical barrier. The washer itself is a thin piece of metal usually rectangular or circular. The tab washer is installed between the bolt head/nut and the mating surface, and the bolted joint is tightened like a regular bolt.

What are Grade 8 bolts used for?

Grade 8 fasteners are considered hi-strength / high-tensile fasteners and are used in many highly industrial applications such as machinery, valves, pumps, vessels, motors, tractors, and even tanks… Although it may seem like a bolt is a bolt, there are significant differences in how each bolt is manufactured.

What is the difference between Type A and Type B washers?

Type A is a series of steel washers with broad tolerances, where precision is NOT critical. Type B is a series of flat washers with tighter tolerances where outside diameters are categorized as Narrow, Regular or Wide for specific bolt sizes.

What are the 4 types of washers?

• Belleville or conical washer.
• Dome spring washer.
• Wave spring washer.
• Finger spring washer.
• Crescent spring washer.

Why is it called a fender washer?

A fender washer is different from a traditional washer, because its outer diameter is much larger in proportion to its center hole. … In fact, fender washers got their name after their use on automobile fenders. These washers are also perfect for use in plumbing, electrical, and sheet metal applications.

What is a grower washer?

The washer is interposed between the head screw and the metal part doing a constant pressure, which assures the tightening force of the assembly and prevents loosening. …

Is there a grade 5 washer?

Flat washers are positioned under the head of a bolt or nut in order to provide a smooth bearing surface and distribute the fastener load over a wider area.

What is a Class 10 washer?

Metric Oversized Washers Use them to cover oversized holes, hold heavy fastening loads, or as spacers and levelers. These washers meet various DIN and ISO specifications, which are international standards for washer dimensions.
