First, Intact Stability. This field of study deals with the stability of a surface ship when the intactness of its hull is maintained, and no compartment or watertight tank is damaged or freely flooded by seawater.

What is intact stability and dynamic stability?

However, dynamic stability deals with the study of stability over a range of angle of heels on the curve of intact stability. For any given angle of heel, dynamic stability is the measure of the work done in heeling the ship to that angle, very slowly and while maintaining constant displacement.

What is loss of intact stability?

Partial flooding refers to a condition in which an intact compartment is not completely flooded.An “intact compartment” means that the deck on which the water rests and the bulkheads that surround it remain watertight. … The final result of partial flooding is usually a decided loss in overall stability.

What is the purpose of Intact Stability Code?

The purpose of the Code on Intact Stability for All Types of Ships Covered by IMO Instruments, hereinafter referred to as the Code, is to recommend stability criteria and other measures for ensuring the safe operation of all ships to minimize the risk to such ships, to the personnel on board and to the environment.

What is the importance of the intact stability to seafarers?

Vessels sustain different and sometimes really heavy environmental conditions and other forces such as seawater, wind, internal mass weight, waves, free surface effect etc. Therefore, it is essential that the vessel remains stable both in still water and in turbulent seas.

What is meant dynamical stability?

The dynamical stability of a ship at a given angle of heel is defined as the work done in heeling the ship to that angle very slowly and at constant displacement, i.e., ignoring any work done against air or water resistance. There is an alternative way of determining the work done in heeling a ship. …

What are the three types of stability?

• Stable equilibrium.
• Unstable equilibrium.
• Neutral equilibrium.

What is intact capability criteria?

marine. Analyzing the data of vessels that behaved well, and especially the data of vessels that did not survive adverse conditions, various researchers and regulatory authorities defined criteria for deciding if the stability of a vessel is satisfactory.

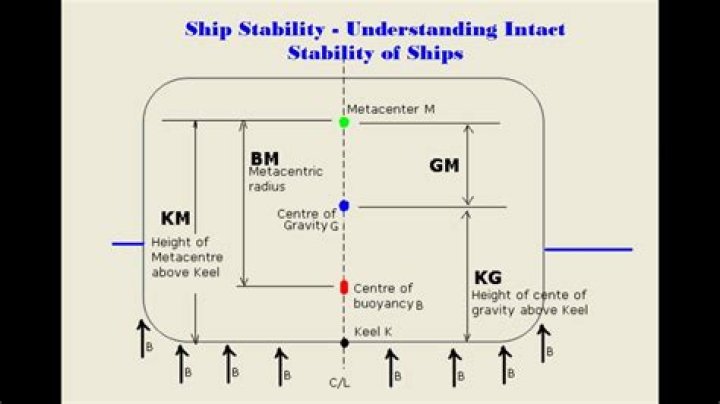

What is GM in ship stability?

The distance between G and M is known as the metacentric height (GM). A stable vessel when upright is said to have a positive metacentric height (GM), i.e. when the metacentre (M) is found to be above the centre of gravity (G). This is usually referred to as having a positive GM or a positive initial stability.

What does it mean when a ship lists?

The angle of list is the degree to which a vessel heels (leans or tilts) to either port or starboard at equilibrium—with no external forces acting upon it. Listing is caused by the off-centerline distribution of weight aboard due to uneven loading or to flooding.

Article first time published on

Why is ship stability important?

Ship’s stability is one of the most important and complex concept about safety of ship and safety of navigation and it is governed by maritime law as well as maritime codes. … Understanding ship’s stability, trim, stress, and the basics of ship’s construction is a key to keeping a ship seaworthy.

What is considered a one compartment ship?

Aside from the possible protection of machinery, or areas most susceptible to damage, such a ship would be no better than a ship without watertight subdivision, and is called a one-compartment ship.

Why do tankers have less freeboard?

WHY OIL TANKER HAS LESSER FREEBOARD THAN GENERAL CARGO SHIPS THEY HAVE GREATER SUB DIVISION, BY THE ADDITIONAL LONGITUDINAL AND TRANSVERSE BULKHEAD. THEIR CARGO OIL HAS GREATER BUOYANCY THAN GRAIN CARGO. THEY HAVE MORE PUMPS TO QUICKLY CONTROL INGRESS OF WATERR AFTER A BILGING INCIDENT.

What is damage stability and intact stability?

A damage stability criterion varies from ship to ship and the requirement for the same is given in SOLAS chapter II-1. It may be single compartment flooding, multi compartment flooding, engine room flooding etc. … Intact and damage stability are very important factors that govern the overall stability of the ship.

How do you know if a ship is stable?

1. GM > 0 means the ship is stable.
2. GM = 0 means the ship is neutrally stable.
3. GM < 0 means the ship is unstable.

What are the factors affecting the ships stability?

Stability overview Stability is determined by the force of buoyancy provided by the underwater parts of a vessel, coupled with the combined weight of its hull, equipment, fuel, stores and load. These forces can also be adversely affected by the prevailing weather conditions and sea-state.

What are the 2 types of stability?

Stability is the ability of an aircraft to correct for conditions that act on it, like turbulence or flight control inputs. For aircraft, there are two general types of stability: static and dynamic.

What is stability types of stability?

There are three types of equilibrium: stable, unstable, and neutral. Figures throughout this module illustrate various examples.

What is stable example?

An example of stable is a person who has a good handle on her life and her emotions. adjective. Stable is defined as a location where animals, especially horses, are housed. An example of a stable is an area of a barn where horses live in their own individual stalls.

What is aircraft stability?

Stability is an aircraft’s ability to maintain/return to its original flight path. Allows aircraft to maintain uniform flight conditions, recover from disturbances, and minimize pilot workload.

What is slack tank?

marine. Any tank that is not totally empty or pressed full.

What is the difference between list and heel?

A list reduces the stability of the vessel. When a list is corrected by increasing the displacement mass, the additional weight should be placed as low as possible in the vessel. A vessel is said to be heeled when it is inclined by an external force, e.g. from waves or the wind.

What is intact buoyancy?

Intact Buoyancy: Intact space below the surface of a flooded area. Inclining Experiment: Experiment, which by inclining a vessel a few degrees, produces with the aid of a formula the metacentric height (GM) and the position of the center of gravity of a vessel.

What is KMT in ship stability?

KB – to Centre of Buoyancy. KG – to Centre of Gravity. KMT – to Transverse Metacentre.

What is trim and list of ship?

Listing vs Rolling vs Trimming “Listing” is a nautical term to describe when a vessel takes on water and tilts to one side. A ship can list either to port (left) or starboard (right). By contrast, a ship is said to be “trimming” when she tips forward or backward.

Is code intact stable?

Intact Stability Code The IS Code included fundamental principles such as general precautions against capsizing (criteria regarding metacentric height (GM) and righting lever (GZ)); weather criterion (severe wind and rolling criterion); effect of free surfaces and icing; and watertight integrity.

How does a ship lose stability?

If a ship is grounded in a region where the water level is descending, at a certain draught it can lose stability. … The angle of loll cannot be corrected by moving masses transversely; such an action can endanger the ship. Angles of loll should be corrected only by lowering the centre of gravity.

What is the intact stability criteria requirement on the angle of heel due to shift of grain?

The intact stability characteristics of any ship carrying bulk grain must be shown to meet, throughout the voyage, three criteria relating to the moments due to grain shift: (1) the angle of heel due to the shift of grain shall not be greater than 12° or—in the case of ships constructed on or after 1 January 1994—the …

What is ship Stability list?

marine. A steady angle of heel created by forces within the ship. For example, when the ship is inclined due to her asymmetric construction, or by shifting a weight transversely within the ship. The list reduces of ship’s stability.

What is heel and trim?

An offset or deviation from normal on this axis is referred to as trim or out of trim. Roll. The tilting rotation of a vessel about its longitudinal/X (front-back or bow-stern) axis. An offset or deviation from normal on this axis is referred to as list or heel.

How much can a ship list?

In fact, in extreme cases, a ship can actually list 60 degrees and recover, according to Burke. An angle of 90 degrees would be the ship lying on its side. This figure is not arbitrary, it’s based on complex computer modelling and wave pool tests.
