Your first indication of carburetor icing is usually a drop in RPM or manifold pressure. If you don’t correct, you’ll notice engine roughness after a while. If you’re still flying around with your head in the clouds, you’ll soon be gliding.

How can we eliminate the threat of carburetor icing?

The best way to avoid carb ice is to follow your airplane flight manual and use carb heat whenever icing is probable. But in the event that you do pick up carb ice, remember to always use full carb heat, prepare for a very rough running engine, and know that eventually your carburetor will be clear.

Under which conditions would the most serious carburettor icing be expected?

Remember, note the air temperature: the most severe icing will occur at temperatures up to around 20 degrees Celsius, and the severity will decrease slowly as the temperature increases.

What conditions cause carburetor icing?

Carburetor icing most often occurs when the outside air temperature is below 70 degrees F (21 degrees C) and the relative humidity is above 80 percent. Unfortunately, the warm air temperature often causes pilots of aircraft to overlook the possibility of carb icing.

What causes a carburetor to ice up?

Carb ice forms because the pressure drop in the venturi causes the air to “cool,” and draw heat away from the surrounding metal of the carburetor venturi. … The result is that the carburetor’s internal temperature may drop below freezing, even on a warm day.

How long should you leave the carburetor heat on when suspecting icing conditions?

Since icing can occur when taxiing with low power settings, or when the engine is idling, select carb hot air ON for a minimum of 15 seconds and then OFF, immediately before take-off to clear any build up.

How long does carb ice take to melt?

The Pilot’s Handbook of Aeronautical Knowledge tells us that the typical time range is 30 seconds to “several minutes.” It’s important to leave the carb heat on long enough to ensure that all the ice is melted, and it’s prudent not to turn off the carb heat until the airplane has passed out of the icing conditions.

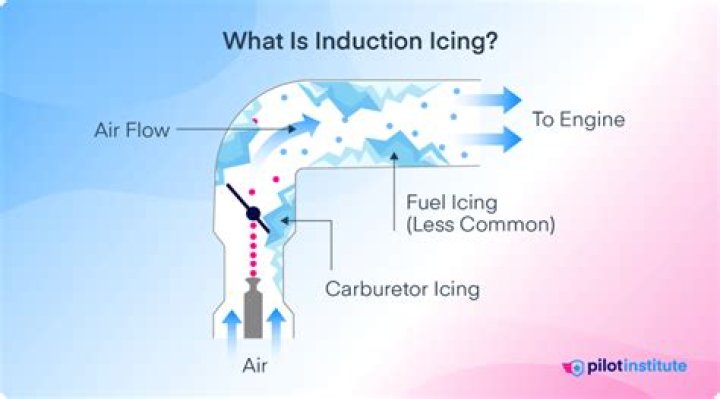

What are the symptoms of induction system icing?

• Rough running engine.
• Vibration.
• Further loss of performance.
• ENGINE STOPS due to fuel starvation.

How fast can carb ice form?

It is possible for the temperature drop in the carburetor to be as much as 70 degrees Fahrenheit, meaning that ice could form on a day where the ambient temperature could be as much as 100 degrees Fahrenheit.

What is the difference of carburetor icing and carburetor heating?

To combat the effects of carburetor ice, engines with float-type carburetors employ a carburetor heat system. Carburetor heat is an anti-icing system that preheats the air before it reaches the carburetor and is intended to keep the fuel-air mixture above freezing to prevent the formation of carburetor ice.

Article first time published on

What speed does the airspeed indicator ASI show?

The airspeed indicator (ASI) or airspeed gauge is a flight instrument indicating the airspeed of an aircraft in kilometers per hour (km/h), knots (kn), miles per hour (MPH) and/or meters per second (m/s). The recommendation by ICAO is to use km/h, however knots is currently the most used unit.

What causes fuel evaporation ice?

Fuel evaporation ice or refrigeration ice is formed because of the decrease in air temperature resulting from the evaporation of fuel after it is introduced into the airstream. … It occurs less frequently in systems in which the fuel is injected into the air downstream from the carburetor.

Why are float carburetors more susceptible to icing?

Why are float carburetors more susceptible to icing (at least two reasons)? fuel evaporation and decrease in air pressure in the venturi. … Intended to keep the fuel/air mixture above the freezing temperature to prevent the formation of carburetor ice.

What happens to our engine if we use the carburetor heat system?

When carburetor heat is applied, the heated air that enters the carburetor is less dense. This causes the air/fuel mixture to become enriched, and this in turn decreases engine output (less engine horsepower) and increases engine operating temperatures.

When should carburetor heat be used?

Carburetor heat should be applied after the engine starts. Leave the carburetor heat on until the engine run smoothly. Generally you should run carb heat any time you SUSPECT carb icing.

How the carburetor heat system works step by step?

Carburetor heat uses hot air drawn from the heat exchanger or heat stove (a metal plate around the exhaust manifold) to raise the temperature in the venturi section high enough to prevent or remove any ice build-up. Because hot air is less dense than cold air, engine power will drop when carburetor heat is used.

Why should you not run the engine on the ground with carb heat on?

Forgetting to push the carb heat back in before takeoff If you have carb ice, applying carb heat will cause your engine to make even less power (hot air is less dense than cold air).

Does fuel injection protect from icing?

A fuel injected engine does not prevent impact ice. If you suspect impact ice, activate carb heat or, for fuel injected engines, alternate air.

How do you stop induction icing?

Induction system ice can be prevented or eliminated by raising the temperature of the air that passes through the system, using a carburetor heat system located upstream near the induction system inlet and well ahead of the dangerous icing zones. This air is collected by a duct surrounding the exhaust manifold.

What are the methods used to eliminate carburetor icing in the induction system?

6 (8777) – Carburetor icing may be eliminated by which of the following methods? C- Alcohol spray and heated induction air. 7 (8778) – Where would a carburetor air heater be located in a fuel injection system?

Why do carburetors need anti icing?

Carburetor Icing The reduced air pressure, as well as the vaporization of fuel, contributes to the temperature decrease in the carburetor. Ice generally forms in the vicinity of the throttle valve and in the venturi throat. This restricts the flow of the fuel-air mixture and reduces power.

Is IAS or TAS higher?

TAS (True Airspeed) TAS is the actual speed of the Aircraft through the air. … If you fly at MSL (Mean sea level) in standard conditions TAS = IAS this changes as you go up in Altitude. As you climb less pressure is exerted on to the Pitot tube so the IAS decreases however TAS increases.

What does Kias stand for?

An aircraft’s indicated airspeed in knots is typically abbreviated KIAS for “Knots-Indicated Air Speed” (vs. KCAS for calibrated airspeed and KTAS for true airspeed).

What is the yellow arc on airspeed indicator?

These different colors indicate different ranges. This white arc indicates our flaps operating range, this green arc identifies a normal operating range, this yellow arc represents a sort of caution or smooth air only range, and then the red line indicates our maximum speed that we can go in this aircraft.

What icing condition may occur when there is no visible moisture present?

What icing condition may occur when there is no visible moisture present? Carburetor ice.

What temperature does mixed ice form?

Outside Air Temp. RangeIcing Type-10° C to -15° CMixed-15° C to -20 ° CRime

What is a Carby?

A carburetor (American English) or carburettor (British English) is a device that mixes air and fuel for internal combustion engines in an appropriate air–fuel ratio for combustion. The term is sometimes colloquially shortened to carb in the UK and North America or to carby in Australia.

Where would a carburetor air heater be located in a fuel injection system?

Impact ice is prevented from forming on the carburetor by the use of an alcohol spray. 8- Where would a carburetor air heater be located in a fuel injection system? A– At the air intake entrance.

What can happen when ice forms around the throttle valve in a float type carburetor?

If water vapor in the air condenses when the carburetor temperature is at or below freezing, ice may form on internal surfaces of the carburetor, including the throttle valve. … This restricts the flow of the fuel/air mixture and reduces power. If enough ice builds up, the engine may cease to operate.

Under what conditions should partial carburetor heat not be used?

In an aeroplane without a carburetor air temperature gauge, partial heat should never be used. Too much fuel with too rich a mixture causes too much cooling and an increased amount of unburned fuel. The unburned fuel may accumulate and foul spark plugs which can cause an engine to run rough.
