Hot Riveting is a process that joins two materials permanently at specific points using a form-closing technique. Thermoplastic must be one of the materials being joined, as it melts under heat and you can shape it with tools.

Why are hot rivets used?

The best known type of rivet, the hot rivet, provides the strongest joints. In this process, glowing hot rivets are fed through precisely-drilled holes where the unformed end is hammered to close the joint. As the rivet cools, it contracts and squeezes the joint tightly together.

Do they still use hot rivets?

RE: Modern Applications of Hot Rivets Rivets are indeed still used in industry.

What is cold rivet and hot rivet?

In hot riveting, protruding end of rivets are heated to an elevated temperature prior to hammering. In cold riveting, hammering is carried out at room temperature. No heating is performed. It requires a suitable heat source (like fuel or gas flame) for heating rivets.

Are hot rivets permanent?

Both hot riveting and cold riveting are permanent joining techniques. … Both require hammering or upsetting for making a closing head at the protruding end of rivet shank; however, intensity of hammering force differs.

What are the three types of rivets?

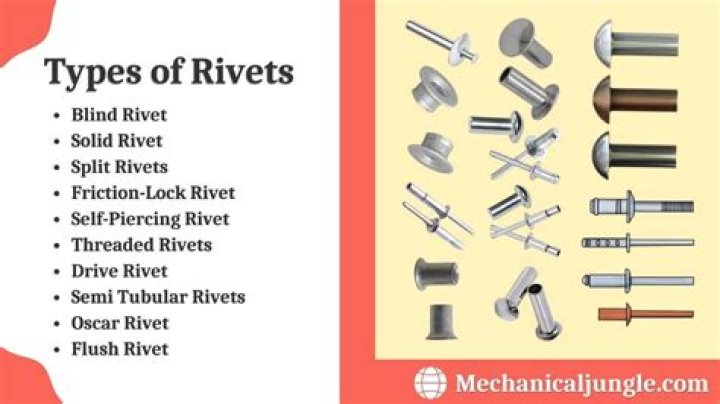

There are four basic types of rivets; tubular, blind, solid and split. There are two basic types of threaded inserts; press-in and blind. Also featured are a number of special rivets and fasteners on this page.

When did they stop using hot rivets?

In 1960, Rivets were replaced with high- strength bolts.

What is cold rivet?

What is cold riveting? When the riveting use a cold rivet/ rivet in ambient temperature then it is called cold riveting. … This type of riveting is done when using steel rivet having a diameter less than 10mm and suitable for rivet made of comparatively ductile metal like aluminum, copper, brass etc. (nonferrous rivets).

What are cold rivets used for?

When a cold rivet is used, the process is known as cold riveting and when a hot rivet is used, the process is known as hot riveting. The cold riveting process is used for structural joints such as the bridges ans metal structures to attain more strength. Cold reviting is used for steel rivets upto 12mm diameter.

How cold rivets work?

The tail of the rivet (currently the headless end) is deformed with a hammer so that the original head and the new head hold the material on either side. The deformation of the tail also shortens the rivet slightly, which tightens it up on the materials.

Article first time published on

Why are planes riveted and not welded?

One reason that airplanes are manufactured with riveted joints instead of welded joints is because the aluminum materials used in their construction isn’t tolerant of heat. Most commercial aircraft are designed with an aluminum body. Not only is aluminum is inexpensive and readily available; it’s also lightweight.

Why dont we use rivets anymore?

Rivets are probably no longer used because welding is cheaper and faster. The reason welding wasn’t used before is because earlier metallurgy produced steel that could be weakened by welding. More recent maetallurgy, and better arc welding methods and materials, can produce a joint as strong or stronger than riveting.

Is welding better than riveting?

Welding gives a rigid joint, and they are stronger than riveted joint. Rivets hold metal sheets; they are not rigid and also weaker than welded joints. … Welding can do on any part of the structure. Riveting required enough clearance between them.

What is the difference between a blind rivet and a pop rivet?

Pop rivets are used in a blind setting like blind rivets, but the material application is a little different. It can be used with plastic, metal, and wood while offering a longer-lasting setting than traditional blind rivets.

Are rivets watertight?

Standard: The most common and the least expensive, these blind rivets are not watertight and aren’t as strong as other types of fasteners. Sealed: Similar to standard rivets, the mandrel on this rivet is completely enclosed, making it watertight.

Are rivets stronger than bolts?

For typical workshop applications, where pop rivets are usually used, threaded fasteners will provide superior strength. Pop rivets use a hollow shaft, reducing their ability to resist shear loads. … By contrast, solid rivets are perhaps the strongest mechanical fastener available.

Who invented rivet gun?

The shop or second head is produced using a hammer or sledge-hammer (the oldest method) or an air hammer called a rivet gun (percussion hammer applying a linear force to the rivets) fitted with a rivet-set on one side and using a bucking bar or dolly on the other side of the assembly.

Which type of rivet is used for applications?

These simple tools are made up of a solid shaft with a head at one end; once installed, the headless end of a solid rivet is deformed with a hammer or rivet gun to keep it in place. Solid rivets are the most commonly used types of rivets and are used in applications where reliability and safety are critical.

Which type of rivet is mostly used?

Solid rivets may be the most common type of rivet. They are versatile and simple to install, and are often used in applications where reliability and safety are important.

What is universal rivet?

The universal head rivet is a combination of the roundhead, flathead, and brazier head. It is used in aircraft construction and repair in both interior and exterior locations. When replacement is necessary for protruding head rivets—roundhead, flathead, or brazier head—they can be replaced by universal head rivets.

What is the diameter of the hot rivet?

These rivets are known as hot driven rivets. The hot driven rivets of 16 mm, 18 mm, 20 mm and 22 mm diameter are used for the structural steel works. Some rivets are driven at atmospheric temperature. These rivets are known as cold driven rivets.

What is a pan head rivet?

Pan heads are slightly rounded with short vertical sides. RIVETS are manufactured in a wide variety of material LOW CARBON STEEL 4.6,4.8,5.6,6.8, BRASS, COPPER, ALLUMINIUM,,STAINLESS STEEL.

Is riveting a hot working process?

The hot upset riveting process uses heat and pressure to form a boss or rivet. At the start of the process, electrical current is applied to the workpiece. As the boss or rivet heats up, the material becomes malleable and collapses under pressure applied by the power head.

How strong is a rivet?

Tensile Strength (Min.) Aluminum Rivet/Steel Body– 1/8: 220 lbs.; 5/32: 350 lbs.; 3/16: 500 lbs.

What is a buck rivet?

A bucked rivet is a round fastener that attaches two or more pieces of metal together. … The rivet’s tail (blunt end) is backed up by a bucking bar that acts as an anvil while the rivet gun and set are acting as a hammer.

Why are blind rivets used in aircraft?

In airplanes, blind rivets are used to secure multiple parts together. They are often found on the trailing edges of airplanes where there’s little or no access to the back side. Even if the back side of an airplane’s trialing edges can’t be easily accessed, blind rivets can be used to secure them together.

Are rivets better than screws?

Compared to screws, rivets hold much better. They are impossible to open and won’t shake loose. This is because the screw only has a head on one side whereas the rivet is supporting both sides. … However, the riveted connection capacity is almost the same as screwed connection capacity for 0.55 and 0.75 mm thick steel.

Are modern aircraft riveted?

From the Airbus A330 to the Boeing 787, practically all commercial aircraft are manufactured with riveted joints instead of welded joints. With riveted joints, two components are connected using a fastener known as a rivet. There are different types of rivets, including lap joints and butt joints.

Why are bridges riveted?

Rivets were nearly always used to fasten together built-up structural steel on bridges. Rivets were also frequently used for the connections that hold the parts of metal bridges together. … Instead, welds and high strength bolts provide the function of rivets in bridge construction today.

Can rivet be removed?

The only way to remove rivets is to essentially destroy them. You do this is by “drilling out” the rivet. You use friction from a drill bit to cut away at the inner wall of the fastener. That way, you separate the shaft from the head.

What's the difference between a rivet and a bolt?

1. A bolt acts like a screw and has male threads, a rivet consists of a smooth cylindrical shaft with a head on one end, with no threads. 2. A bolt easy to put together and take apart, a rivet likes a metal stick holding two pieces of metal together, the only way to take it out is to cut or drill it out.
