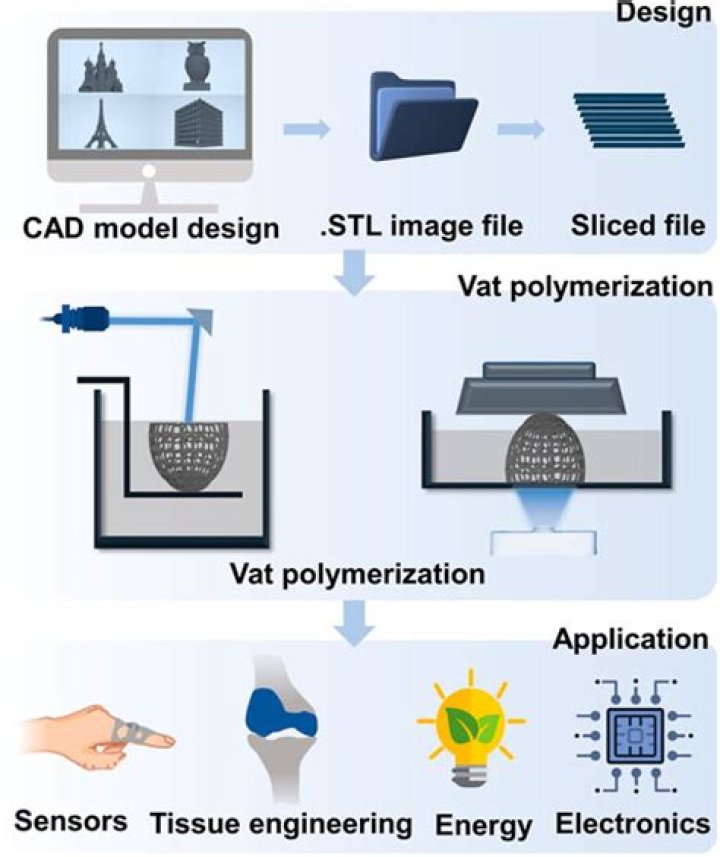

Vat Polymerization is a method in 3D printing to print 3D objects by using photopolymerization, which is the process of exposing liquid polymers to ultraviolet (UV) light to turn liquid into solids. Digital light processing technology is used for the process.

What is SLA vat?

Vat Photopolymerization is a type of additive manufacturing technology that produces 3D objects by selectively curing photopolymer liquid resin using light-activated polymerization. … Stereolithography (SLA), the first patented and marketed AM process, is a vat photopolymerization technology.

Can you 3D print a resin vat?

In a controlled, cool, dark room, you can leave uncured resin in your 3D printer vat for several months without issues. … You can also 3D print a vat cover. Many people regularly go weeks with leaving uncured resin in the printer tray, and they don’t run into any problems.

What is vat polymerisation?

Vat polymerisation uses a vat of liquid photopolymer resin, out of which the model is constructed layer by layer. An ultraviolet (UV) light is used to cure or harden the resin where required, whilst a platform moves the object being made downwards after each new layer is cured.

What is the earliest example of a vat polymerization type process?

Stereolithography was the first AM process to be invented. The first patent was filed in 1975 which described a two-laser 2PP process[7].

What is stereolithography 3D printing?

Stereolithography (SLA) is an industrial 3D printing process used to create concept models, cosmetic prototypes, and complex parts with intricate geometries in as fast as 1 day. A wide selection of materials, extremely high feature resolutions, and quality surface finishes are possible with SLA.

How do photopolymers work?

Photopolymerization works by leveraging the UV-sensitive properties of photopolymer materials. For most 3D printing processes, layers of deposited material are cured via a UV light. … The UV light triggers a reaction within the deposited material, essentially solidifying it.

What is sheet lamination 3D printing?

Sheet lamination is one of the seven recognized 3D Printing methods. The process uses sheets of building material which are cut through laser or knife and the sheets are joined one after the other either by using an adhesive or by wielding the laser cut sheets together to form the 3D object.

What is DLP 3D printer?

DLP (Digital Light Processing) is a 3D printing technology used to rapidly produce photopolymer parts. It’s very similar to SLA with one significant difference — where SLA machines use a laser that traces a layer, a DLP machine uses a projected light source to cure the entire layer at once.

What is daylight polymer printing?

Daylight Polymer Printing (DPP) by Photocentric Instead of using a laser or a projector to cure the polymer, the DPP manufacturing process uses a LCD (Liquid Crystal Display). This technique, also called LCD 3D printing, uses unmodified LCD screens and a specially formulated Daylight polymer.

Article first time published on

Is it OK to leave resin in the VAT?

Uncured resin can remain intact in the tank or vat of your 3D printer for many weeks if you keep it away from UV light exposure. The ideal condition for storing uncured resin is a cool, dark place.

Can I leave my 3D printer overnight?

You should not leave your 3D printer unattended, since it poses various major hazards. There have been reported cases of printers catching on fire due to poor wiring or heated bed failures.

What occurs during polymerization?

polymerization, any process in which relatively small molecules, called monomers, combine chemically to produce a very large chainlike or network molecule, called a polymer. The monomer molecules may be all alike, or they may represent two, three, or more different compounds.

What is the most widespread and cheapest 3D technology?

While FDM technology was invented after the other two most popular technologies, stereolithography (SLA) and selective laser sintering (SLS), FDM is typically the most inexpensive of the three by a large margin, which lends to the popularity of the process.

Which can be used for rapid prototyping?

• Stereolithography (SLA)
• Selective Laser Sintering (SLS)
• Fused Deposition Modeling (FDM)
• Selective Laser Melting (SLM)
• Laminated Object Manufacturing.
• Digital Light Processing.
• Binder Jetting.

What are the 6 parts of photopolymer?

• Fabrication.
• 3D Printing.
• Viscosity.
• Photons.
• Resin.
• Ultraviolet Light.
• Electric Potential.
• Photoinitiator.

Is UV resin plastic?

Is UV Resin Plastic? Yes, UV resin is a kind of plastic. This is different from epoxy resin in that it requires UV light to cure and set it.

Is resin A plastic?

Resin is not just a fancy word for average plastic. It is a composite blend, which is rotationally molded into strong and pliable products that can mimic the look of stone and metal materials at a more affordable cost and a fraction of the weight. … Grocery bags are made of plastic, but they are thin and weak.

What are the disadvantages of stereolithography?

• Fragility: stereolithography uses equivalent materials which are resins. …
• Expensive machines: if we had predicted the boom in 3D printing in the past few years, experts have neglected the cost of the machines and the difficulty of their operation.

Why is Binder 3D faster than direct 3D printing?

Binder 3-D printing has a few advantages over direct 3-D printing. First, it tends to be faster than direct printing because less of the material is applied through the nozzles. Another advantage is that you can incorporate a wider variety of colors and materials in the process, including metals and ceramics.

Is SLA or DLP better?

The primary difference between DLP and SLA is the light source; SLA uses a UV laser beam while the DLP uses UV light from a projector. … Since the curing (hardening) of the resin is done from point to point, SLA 3D printing is more accurate and the quality of the print is also better in comparison to DLP 3D printing.

Is DLP faster than SLA?

The DLP process is considered to be faster than stereolithography since it does not work point by point. … Most of the time, the resin tank on DLP machines is shallower than those used by the SLA process. Finally, the last difference between SLA and DLP technologies is in the maintenance.

What is LCD 3D printer?

LCD 3D Printers use an LCD display module to project a certain light pattern which is then used to cure resin in the resin vat. LED light is used as the light source while the LCD screen controls the light pattern. Light is emitted from the LED lamp. It then passes through an LCD screen and is absorbed by the resin.

What are ded systems?

Directed Energy Deposition (DED) is a 3D printing method which uses a focused energy source, such as a plasma arc, laser or electron beam to melt a material which is simultaneously deposited by a nozzle.

What is material jetting?

Material jetting creates objects in a similar method to a two dimensional ink jet printer. Material is jetted onto a build platform using either a continuous or Drop on Demand (DOD) approach. Material is jetted onto the build surface or platform, where it solidifies and the model is built layer by layer.

What is laminated soft iron core?

Laminated Core is a rectangular shaped type of soft magnetic core. … Laminated terms such as each layer are made up of insulated layers of steel plate that are nicely glued together and compacted into a solid core rather than a single piece of a solid block.

When was VAT photopolymerization invented?

This process was introduced to the market in the late 1980s by 3D Systems and called Stereolithography based on Chuck Hull’s patent for the technology.

What is photopolymerization process?

Photopolymerization is a technique that uses light (visible or ultraviolet; UV) to initiate and propagate a polymerization reaction to form a linear or crosslinked polymer structure.

What is range of thickness of slices in SLA process?

Standard lead timeMinimum of 3 working days, depending on part size, number of components and finishing degrees (offline orders) 4 working days (online orders) 12 hours (NextDay orders)Standard accuracy±0.2% (with lower limit on ±0.2 mm)Layer thickness0.125 – 0.15 mm

How long does 1kg of resin last?

1 liter of resin can last you anywhere from 5 days to a month of printing.

How often do you empty resin vat?

You only empty the vat when you have a failed print (to relevel). Otherwise, just add more to keep the vat 1/3 full. On big prints you made have to add more resin mid print. 1 of 1 found this helpful.
