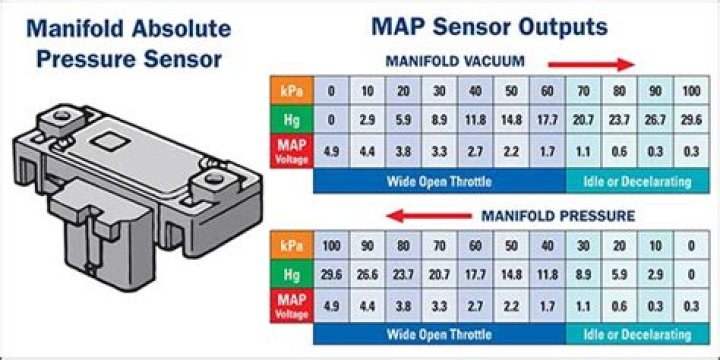

When the engine is off, the absolute pressure inside the intake equals atmospheric pressure, so the MAP will indicate about 14.7 psi. At a perfect vacuum, the MAP sensor will read 0 psi. … With a running engine, intake manifold vacuum usually runs around 18 – 20 “Hg (inches of mercury).

What should a MAP sensor read when engine off?

When the engine is off, the absolute pressure inside the intake equals atmospheric pressure, so the MAP will indicate about 14.7 psi. At a perfect vacuum, the MAP sensor will read 0 psi. … With a running engine, intake manifold vacuum usually runs around 18 – 20 “Hg (inches of mercury).

What should MAP sensor read at WOT?

A good MAP sensor should read barometric air pressure when the key is turned on before the engine starts. This value can be read on a scan tool and should be compared to the actual barometric pressure reading to see if they match.

What voltage should a MAP sensor read at idle?

With the ignition on, the MAP sensor output should be around 5 volts. Start the engine and check the reading; at idle, the MAP sensor should read 1 to 2 volts. This indicates the MAP sensor is responding to changes in vacuum.

What should a MAP sensor read Koeo?

We all know that the MAP sensor should read atmospheric pressure at KOEO. Well, I live at 2400 ft., and normal atmospheric pressure at that altitude is 27.5 in./Hg. Remember, you subtract 1 in./Hg per 1000 ft. of altitude, so normal pressure here is 27.5 in./Hg (29.9 – 2.4 = 27.5).

What causes P0106 code?

Code P0106 is triggered when your PCM sees that the voltage pertaining to the manifold pressure is moving up and down in an erratic way, and also doesn’t see any corresponding change in engine load.

What are some symptoms of a bad MAP sensor?

• Poor Fuel Economy. If the ECM is reading low or no vacuum, it assumes the engine is at high load, so it dumps in more fuel and advances spark timing. …
• Lack of Power. …
• Failed Emissions Inspection. …
• Rough Idle. …
• Hard Starting. …
• Hesitation or Stalling. …
• Check Engine Light.

What should MAF voltage?

A good MAF senor should show a steady linear rise from 1000 to 2250. A sensor out of calibration may rise too quickly in reaction to the rpm. This could cause an acceleration problem.

What is normal intake manifold pressure?

An average intake manifold pressure around -700 mbar (i.e. a vacuum, relative to atmospheric pressure). A series of small depressions, producing a ripple effect, cycling at around 21-25 depressions per second. The depressions are equal in amplitude (around 10 to 15 mbar).

How do you reset a MAP sensor?

Check the MAF sensor and clean it out with dry air. Then put it on and disconnect the battery for 12 minutes and hook it up. This will clear the computer to want to relearn itself. Then drive the vehicle and see what happens.

Article first time published on

How do I test a MAP sensor with a scan tool?

Start the vehicle and see if the MAP sensor takes a reading and changes when you press the throttle. It should rise quickly when the gas is pressed, fall to a low number when the gas is released, and stabilize at a higher reading shortly after. Graph the sensor with an advanced scan tool.

What causes low intake manifold pressure?

A vacuum reading at idle that is much lower than normal might indicate leakage through the intake manifold gaskets, manifold to carburetor gaskets, vacuum brake booster or the vacuum modulator. Low readings could also be caused by very late valve timing or worn piston rings.

What should MAF sensor read at idle?

It’s a good idea to test a MAF sensor before replacing it. Depending on the engine size, the MAF’s PID value can range from 2 to 7 grams/second (g/s) at idling and up to 25 g/s at 2500rpm.

What does map kPa mean?

MAP sensors measure absolute pressure. Boost sensors or gauges measure the amount of pressure above a set absolute pressure. That set absolute pressure is usually 100 kPa. This is commonly referred to as gauge pressure.

How do I know if my mass airflow sensor is bad?

1. The engine is very hard to start or turn over.
2. The engine stalls shortly after starting.
3. The engine hesitates or drags while under load or idle.
4. Hesitation and jerking during acceleration.
5. The engine hiccups.
6. Excessively rich or lean idling.

What happens if you unplug mass air flow sensor?

If you unplug the mass air flow sensor the car will start. If you try to plug it in while it’s running the car will die.

Can a MAP sensor be bad and not throw a code?

Depending on the voltage from the MAP sensor, the ECU will fire the injector for a longer or shorter burst to deliver more or less fuel, as the case may be. … The thing is, a bad MAP sensor won’t always trigger a check engine light or cause the computer to register a DTC (diagnostic trouble code).

Why do map sensors fail?

Why do MAP sensors fail? Like most electric sensors, MAP sensors are sensitive to contamination. If the map sensor uses a hose, the hose can become clogged or leak and unable to read pressure changes. In some cases, extreme vibrations from driving can loosen its connections and cause external damage.

Is P0106 serious?

Is Code P0106 Serious? It’s important to note that Code P0106 is a serious error that should not be taken lightly. Problems with the MAP sensor can: Cause the throttle to malfunction.

How do I fix code P1101?

1. Replace or repair any faulty, damaged, or loose wiring, connectors, or components within the MAF sensor harness.
2. Clean or replace the air filter if it is dirty.
3. Clean the MAF sensor with specialized cleaner. …
4. Repair any leaks within the vacuum system.

Can a bad MAP sensor cause high idle?

your car surges and dies out: a faulty map sensor can cause engine rpm to fluctuate or surge, primarily at idle or low speeds.

What does a MAP sensor sense?

MAP Sensors The sensor provides instant manifold pressure information to the engine’s electronic control unit. The data is used to calculate air density and determine the engine’s air mass flow rate, which in turn determines the required fuel delivery for perfect combustion.

How do I reset my mass airflow sensor?

1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness connector.
6. Make sure DTC P0102 is displayed.
7. Erase the DTC memory. “

How do I know if my boost pressure sensor is bad?

Next to the check engine light, the most noticeable symptoms of a faulty turbo boost sensor are lack of engine power and poor acceleration. This is mainly caused by the ECU which disables the turbo boost to protect the engine. Other symptoms include rough idling, hesitation, and hard starting.

How do you calibrate a MAP sensor?

1. In the Top Left box of the MAP HRT table, double click it, and type 0.631, press enter.
2. In the Top RIGHT box of the MAP HRT table, enter 40, press enter.
3. In the second row, on the left, enter 4.914, press enter.
4. In the second row, on the right, enter 304, press enter.

Do MAP sensors need to be programmed?

Each sensor therefore needs to be Calibrated – it needs to be programmed into the ECU what the pressure reading is at a low point around 0 Volts, and at a high point around 5 Volts. … Without an accurate MAP sensor reading, it is impossible for the ECU to control the engine properly.

Can a car run without a MAP sensor?

Your vehicle will not only run less efficiently without the readings from the MAP sensor, but its engine and catalytic converter may also wear out faster. To keep your ride running smoothly for as long as possible, you should avoid driving with a bad MAP sensor unless it’s an emergency.

What is normal MAF lb min?

At idle it will be around 0.750 and as I accelartate and increase engine speed, it increases, at 70mph at 2100rpm it will be in the 5 to 7 lb/min range.
