Household appliances aren’t connected in series because if they were they would have to “share” the line voltage with the other appliances in the circuit. … Each lamp increases the resistance in the circuit, which decreases the current through the circuit.

What would happen if household appliances are connected in series?

If one appliance, in a set of series combination breaks down, the circuit becomes open and the flow of current ceases. 3. To avoid this the household appliances like bulb, T.V., fan, etc.

Why appliances at home are connected in parallel?

Electrical appliances are connected in a parallel arrangement in a house circuit because: Each appliance gets full voltage as resistance in a parallel arrangement is low. If one appliance fuses, it does not affect the working of other appliances. We can use one appliance without using other appliances.

What will happen if one appliance in the series circuit fails to function?

In a series circuit, every device must function for the circuit to be complete. One bulb burning out in a series circuit breaks the circuit. In parallel circuits, each light has its own circuit, so all but one light could be burned out, and the last one will still function.

Why should we connect electric appliances?

Why should we con Answer : We should connect electrical appliances in parallel so that each appliance would get full voltage. If one appliance is faulty, other appliance will continue working. Each appliance will get the desired current according to their resistance.

Why do some appliances not need an earth wire?

Some appliances, such as vacuum cleaners and electric drills, do not have an earth wire. This is because they have plastic casings, or they have been designed so that the live wire cannot touch the casing. As a result, the casing cannot give an electric shock, even if the wires inside become loose.

Can a refrigerator cause electrical problems?

From improper grounding to overloaded circuits, a refrigerator can cause an electrical circuit to be tripped in plenty of ways. Keep in mind that a tripped circuit is actually a good thing. It keeps more serious problems like fire or electrocution from developing.

What appliances have parallel connection?

Possibly, the most familiar use of parallel circuits is found in lighting fixtures: if one bulb burns out, the other bulbs in the fixture continue to operate. Other uses include an electronic OR gate, where two switches are in a parallel circuit: one of the switches must be closed for the circuit to function.

Why do you think it might be a problem if too many appliances are turned on at once?

A power point overload occurs when you exceed the maximum amperage of the electrical circuit you are using. This can be caused by plugging too many appliances into the one power point or running appliances that draw high amps at the same time. The result of an overload can be a short circuit and quite possibly a fire.

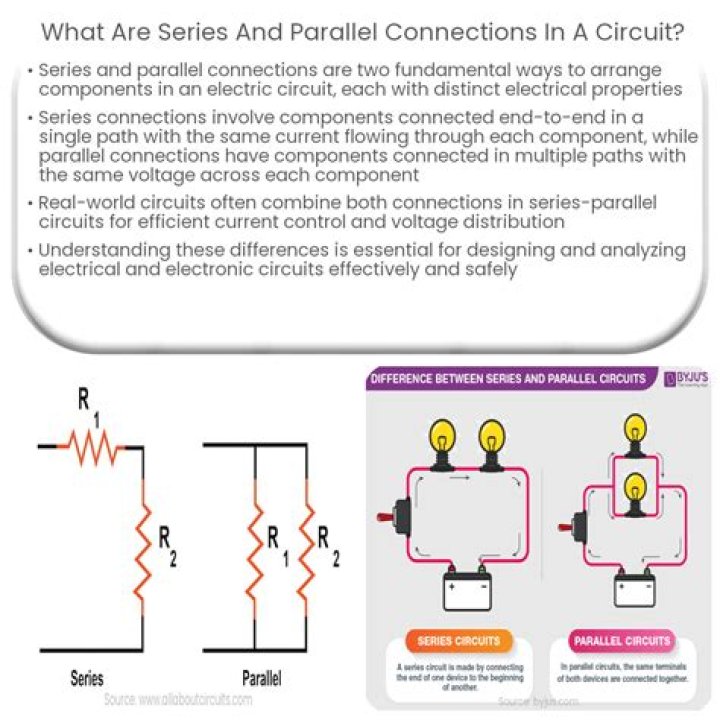

Why are electrical appliances and lamps connected in parallel?

The main reason behind the custom of wiring house appliances in parallel is to give each appliance an independent circuit, the breakdown of one appliance would affect another if they were connected in series.

Article first time published on

Which combination is set in household wiring series or parallel?

Most standard 120-volt household circuits in your home are (or should be) parallel circuits. Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.

Can an appliance cause a short circuit?

Short circuits can occur in appliances by means of a faulty plug, faulty power cord, or a flaw in the appliance itself.

What causes a power surge in the fridge?

Causes of a Refrigerator Power Surge If you plug too many items into the same outlet and run the electronics all at one time, it may cause a surge. Lighting strikes directly to a home or to power lines around the home may also cause surges. In some instances, a refrigerator itself may be the cause of a surge.

What is the most common cause of electrical failure?

Loose connections are the most common source of electrical equipment failure, causing over 30% of unexpected outages.

Can you name some electrical appliances at home that needs to be grounded or earthed?

Electrical devices that require a grounded receptacle (equipment ground) are: high-end appliances, computers, TV’s, stereo equipment, power tools, surge protector strips and any other electrical device with the cord having the third prong.

Why do some appliances need to be grounded?

Grounding helps protect you and your home from the dangers of damaged circuits or electrical overloads. When power surges happen, the excess electricity introduced to the system could leap out of the wiring. Without electrical grounding, this stray voltage could start a fire, damage appliances, or shock bystanders.

Can fridge work without earthing?

Answer: Reason: The refrigerator could also be operation without the earth wire. … The power cord of the refrigerator has three-pin plug (for grounding) which complies with standard. In no circumstances the third pin of the power cord for grounding sail be cut or dismantled.

What will happen if too many electrical appliances are connected to one circuit?

Figure A: Circuit With an Overload An electrical circuit with too many electrical devices turned on can exceed the circuit limit. Circuit breakers or fuses will automatically shut off the circuit at the main panel.

What could happen if you plug too many appliances into one outlet?

A power overload point is when the maximum amperage of the electrical circuit is exceeded. Plugging too many appliances into a single power point can cause this. A short circuit and possibly a fire can be the result of an overload.

Why is connecting many appliances into the same outlet is discourage?

Response: The danger of connecting too many plug connections in one socket are that the socket can chance a risk of getting overloaded, and then “some kind of bad thing can happen” and make it work incorrect or be fatal.

Which appliances are connected in series?

Automatic house- heating equipment has a thermostat, and safety cut-out connected in series with a voltage source. Water heaters, well water pump, lamps, freezers and refrigerators are some of the other appliances which use a series circuit.

What effect does connecting additional appliances in parallel to a circuit have on the current through that circuit?

As more and more resistors are added in parallel to a circuit, the equivalent resistance of the circuit decreases and the total current of the circuit increases. Adding more resistors in parallel is equivalent to providing more branches through which charge can flow.

When would you use a parallel circuit?

We know the parallel components of circuit have same voltage. So, we use a parallel circuit when we want two components of a circuit to have same voltage.

Why are electrical appliances connected in series?

The potential difference across each appliance is equal to the supplied voltage. The total effective resistance of the circuit can be reduced by connecting electrical appliances in parallel. Other components will function even if one component breaks down, each has its own independent circuit.

Why are lambs connected in parallel?

Each lamp will have half the battery voltage if the lamps are identical. In parallel so that each component has the same voltage. Both lamps have the full battery voltage across them.

When the potential difference for all the resistors in a circuit is the same and is equal to applied potential difference?

In parallel the resistors are all connected together at one end, and are also all connected together at the other end. The potential difference across each resistor is the same, and the currents add to equal the total current entering (and leaving) the parallel combination.

Why should we turn off your appliances if not in use?

It’s important to switch off electrical appliances when they’re not being used because they’re mechanical devices that could fail and cause major fires if nobody notices them.

What are the disadvantages of having series connection in the household?

• If one electrical appliance stops working because of a serial circuit fault, then all devices will stop functioning.
• All electric switches will have common switches in series circuits so that they can not be switched off and on separately.

Which of the following is a disadvantage of parallel connection?

A disadvantage of parallel circuits is that they require more wiring. Additionally, the voltage can’t be increased in a parallel circuit without decreasing the resistance in the circuit.

What happens when an appliance short circuits?

Short circuits are a major type of electrical accident that can cause serious damage to your electrical system. They occur when a low-resistance path not suited to carry electricity receives a high-volume electrical current. … The result of a short circuit can be appliance damage, electrical shock, or even a fire.

What causes short circuit in house?

Short circuits can occur when insulation on wires melts and exposes bare wires. … Short circuits can also occur within the wiring of individual devices, such as lamps or other plug-in appliances. Frayed or otherwise damaged electrical extension cords or appliance cords can also cause short circuits.
