SDS and SDS Plus are interchangeable. The difference is that SDS Plus have 4 splines in the shank that hold it more securely. Both are 10mm shank size. SDS Max is 18mm shank size, so SDS Max bits are not interchangeable with SDS or SDS Plus.

What is the difference between SDS SDS Plus and SDS Max?

SDS Plus have a 10mm shank, while the SDS Max has an 18mm. This means that SDS Max bits have an increased capability for tougher masonry work, withstanding more torque and force. The SDS Plus range is shorter in length and is tailored to lighter duty work and smaller diameter holes.

Are hammer drill bits interchangeable?

SDS and SDS-Plus shank types are completely interchangeable. The diameter of the shank and types of grooves will remain the same for each of these shank types regardless of the diameter, length, or other features the drill bit may have.

What size is SDS Max?

The diameter of an SDS and SDS Plus shank is 10 millimeters. (The SDS Max is 18 millimeters. The SDS Quick is 6 mm.) The SDS shank has the advantage of fitting into a simple spring-loaded chuck, so that bits are simply pushed into the chuck without tightening.

What does SDS Max stand for?

But what is an SDS drill? SDS stands for Slotted Drive Shaft or Slotted Drive System. SDS bits are inserted into the chuck to make a rotary hammer or a hammer drill.

Can I use SDS bit in regular hammer drill?

They combine the rotary motion of a standard drill with a hammering action that is much more efficient and effective than the hammering action of a hammer drill. There would be no point in putting a SDS bit in as part of the way the SDS drill works in the hamering action.

Can I use SDS Plus in normal drill?

Can I use an SDS drill bit in a normal drill? You should not use SDS drill bits in a standard drill. The chuck on a standard rotary or hammer drill is not designed for SDS drill bits. Standard bits can come loose, damage the drill and affect the quality of your work.

What is the difference between SDS Max and Spline?

Spline bits have become much less common than SDS Plus or SDS Max. They are very similar in capacity and variety to the range available to SDS Max bits. The major difference is that chipping bits and drilling bits that are used for spline drive drills have different shanks as one is smooth and the other has splines.

Are SDS and SDS Plus interchangeable?

Yes, both SDS and SDS Plus are 10mm and interchangeable. SDS is the original slotted drive system (aka slotted drive shaft). SDS Plus is an improvement, but was designed to be backwards compatible.

Can I use hex shank drill bits in a regular drill?

Regular drills come with chucks responsible for clamping different drill bits. Given their design, chucks can hold both hex drill bits and rounded-ended drill bits. Thus, hex impact driver bits will be compatible with regular drills.

Article first time published on

Are all SDS drill bits for masonry?

SDS Plus Bits Information SDS drills are specialized hammer drills and for this reason it is rare to find any SDS shank accessories designed for drilling into wood or metal; standard SDS Plus drill bits are made for drilling into tough materials like concrete, rock and masonry.

Are Ryobi drill bits universal?

No, not all drill bits fit in all drills. 3/8” sized drills will accept up to 3/8” drill bit shafts. … Regular drill bits without a hex shanked bit holder cannot be used in an impact driver, however, hex shanked bits can be used in regular drill drivers.

Are drill bits universal between brands?

Second, the diameter of the shank, which must be the same as the chuck size of the electric tool. Therefore, different brands of drill bits can be used for any branded-machine that provided the same shank size and diameter.

Which SDS hammer drill is the best?

• Makita DHR202Z 18V plus Rotary Hammer Drill.
• Makita HR2630 3 Mode SDS Plus Rotary Hammer Drill.
• Bosch Professional GBH2-20 D Corded 240V Rotary Hammer Drill with SDS plus.
• VonHaus 1500W SDS Rotary Impact Hammer Drill.
• Dewalt D25134K-GB SDS Plus Hammer and Quick Change Chuck.

What is SDS Max drill?

(The SDS Max is 18 millimeters. The SDS shank has the advantage of fitting into a simple spring-loaded chuck, so that bits are simply pushed into the chuck without tightening. This shank and chucks made for it are especially suited to hammer drilling with masonry drills in stone and concrete.

What is the difference between a hammer drill and an SDS drill?

SDS Rotary Hammers are similar to Hammer Drills in that they also pound the drill bit in and out while it’s spinning. They use a piston mechanism instead of a special clutch enabling them to deliver a much more powerful hammer blow than traditional Hammer Drills – they are able to drill larger holes much faster.

Will SDS bits fit standard chuck?

britishblue New Member. If you use them in a normal drill and they work loose, and the shank that’s gripped in the chuck, gets chewed up a bit, they may not fit in a SDS chuck. I wouldn’t use them until you have an SDS drill.

What does HSS stand for in drill bits?

HSS drill bits, an acronym for high speed steel drill bits are extremely hardwearing and particularly well designed for drilling into metal surfaces, as they are much more resistant to the heat generated from the fast speed operation.

Can you use a hammer drill bit in a rotary drill?

Hammer drill bits will work in a regular drill, but not very good. Rotary masonry drill bits will work in a regular drill and aren’t designed for use in a hammer drill. … Rotary masonry bits often come with warnings that they should only be used in drills with rotary-only operation.

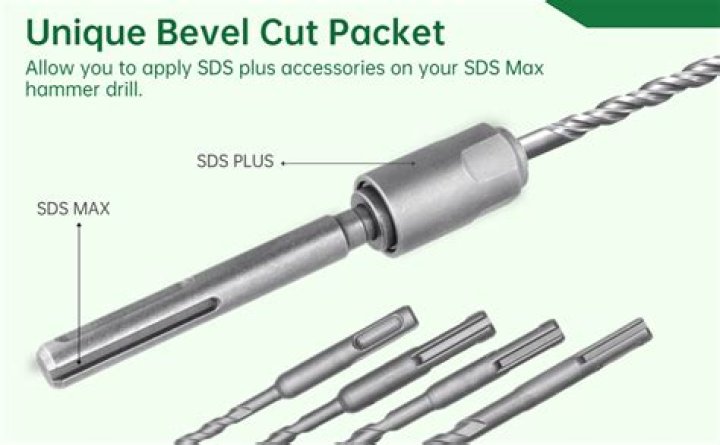

What is SDS Plus adapter?

The SDS plus adapter with drill chuck is ideal for using cylindrical drill bits in SDS plus hammers with hammerstop. Use without Impact Function. … Scope of delivery: Drill chuck 1.5-13mm with SDS plus adapter and key.

Who invented SDS drill?

Bosch invented the SDS-plus system (shank size 10 mm) and revolutionised the way professionals can fix drill bits in small class hammers (< 5 kg).

Does SDS Max fit spline?

While SDS-Max has caught on it unfortunately never replaced Spline and now we have both types of tools and bits on the market for really no good reason we can see. … There are also several types of smaller chipping and chiseling bits that work extremely well with standard SDS Rotary Hammers.

What's the difference between straight shank and hex shank?

Straight shanks are used for keyed or keyless chucks (from 10 to 13 mm). SDS shanks are used for SDS+ or SDS Max chucks. Hex shanks are used for screw guns or electric screwdrivers.

Do impact drivers use different bits?

An impact driver looks like just a drill to the untrained eye, but they are very different tools, starting with how you load their bits. … An impact driver has a collet that accepts 1/4-inch hex shank driver bits—to insert or release a bit you pull the collet forward.

Can you use an impact driver bit in a drill?

Yes, you can use an impact driver. … You can make small holes in light-gauge steel and soft wood with an impact driver using a standard hex-shank drill bit, but if you want to make holes larger than ¼ inch in heavy steel, hardwood, or pressure-treated lumber, you need a bit rated specifically for an impact driver.

What is the longest SDS masonry drill bit?

Quality long length SDS Plus rotary hammer bit 1/2″ diameter by 24″ overall, 22″ usable. Works in any SDS hammer including Bosch, DeWalt, Milwaukee. Makita, Panasonic, Hilti, Hitachi and others. This is the longest SDS plus bit available!

How do you grease a SDS hammer drill?

Liberally spray an old rag with WD40, and carry it around with your tools. Wipe the bits now and again with it. That’s enough(using the rag will also help remove dust and grit).

Do Dewalt drill bits fit Ryobi?

The short answer is yes. Some bits are made to work better in your impact driver.

Will Bosch drill bits fit Ryobi drill?

For that, you would need special drill bits which are stronger, and designed differently. Ryobi does make masonry bits, but the Bosch ones are better. The Bosch HCBG700 7-Piece Blue Granite Hammer Drill Masonry Bit Set, which is available on Amazon, would be a good choice.

Can I use Milwaukee bits in Ryobi drill?

The simple answer is yes, but the driving bits would need an adapter. If you are using Milwaukee bits, now in your drill, then you already have an adapter that will fit these bits.

Can I use any drill bits with Dewalt drill?

Only drill bits with the correct hex shank will fit. DEWALT offers a pretty good selection of bits for this tool.
